Détails de l'offre | |
Numéro d’entrepôt | 1305-2430 |
Type de machine | Appareils d agrafage |
Marque | RUCHSER |
Modèle | Jumbo Automatic Video |
Année de construction | neu |
Type de commande | konventionell |
Lieu d’entreposage | ab Werk |
Pays d’origine | Allemagne |
Délai de livraison | 2 Wochen |
Base de fret | ab Werk |
- mm | |
- mm | |
- Nm |
Glazing bead nailing device "2 P Jumbo automatic E.C." - new -
Your advantages:
- The corner joints are closed
- No open glazing bead joints
- There are no color differences when painting
- The glazing bead frames can be easily assigned

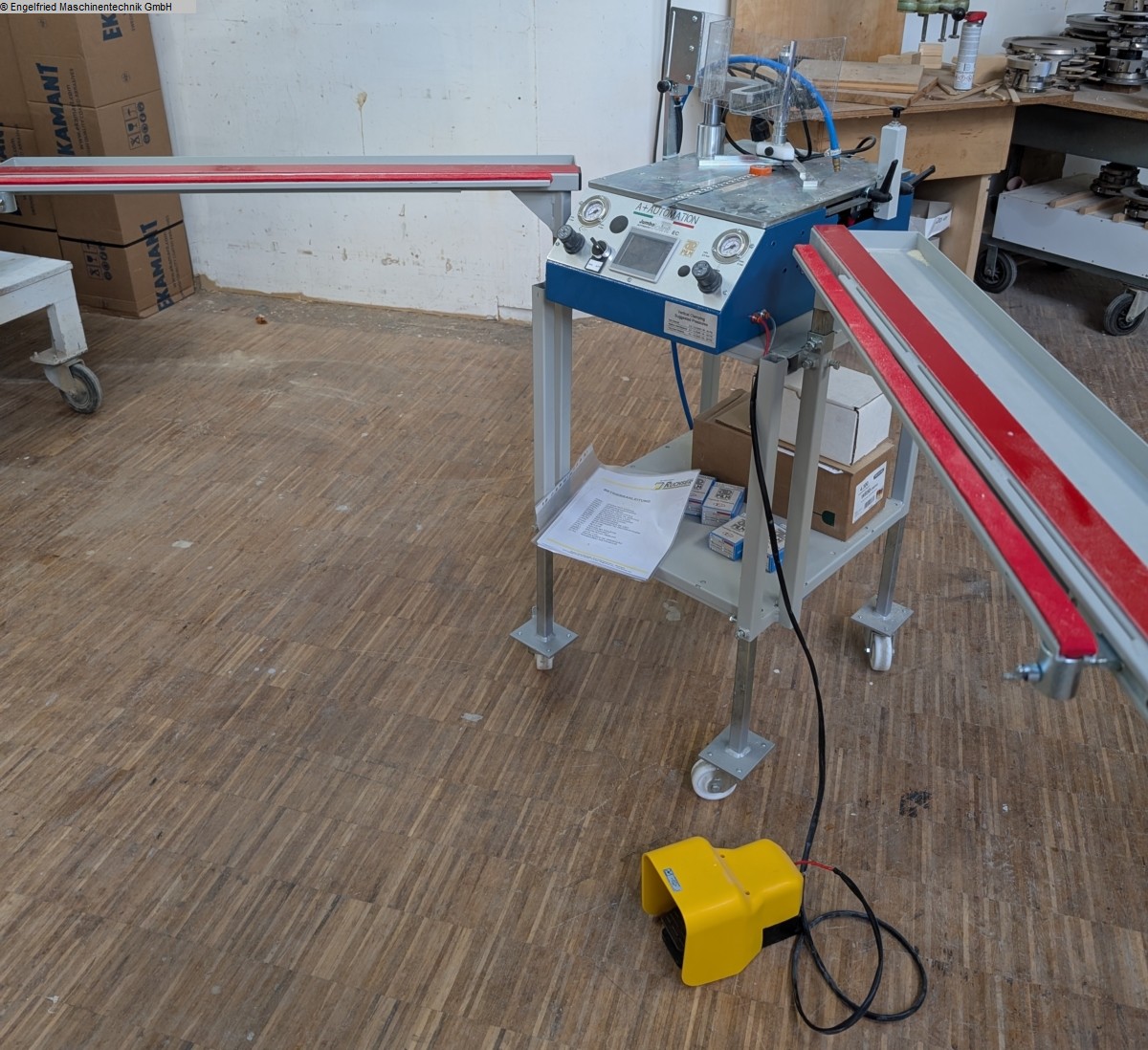

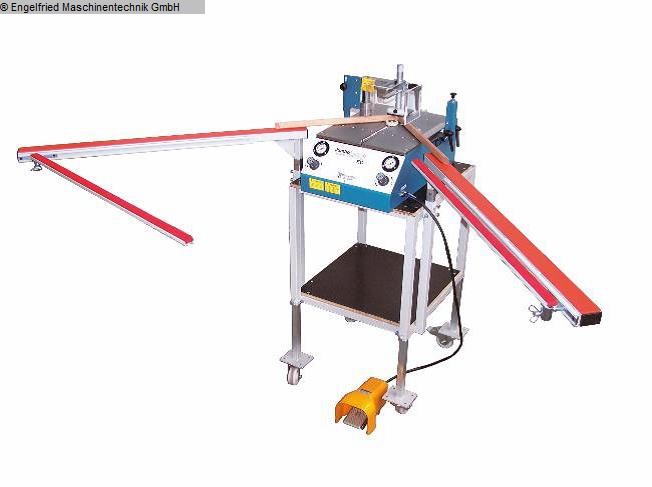

Staple Corner Joining Machine 2P
Jumbo Automatic E.C. for clamping glazing bead frames.
choice between automatic and manual operation;
With angle system, clamping device from above and from the front
Pressure separately adjustable.
Insertion of parallel and superimposed
Clamping possible via electronic programming control.
Stapler can be mounted on a suitable work table,
Operation via foot valve.
-----------------------------------------------------
Price in this version on request!
Plus the current material cost requirement from 300.82 euros
Plus packaging/shipping
Surcharges:
---------------------
Mobile work table
height adjustable from 700 - 1000 mm,
2 support rails, pluggable
1000 mm long, 2 pieces swiveling and sliding
Support rails 1000 mm, support rails covered with felt,
4 swivel castors, 2 of which have a stop device.
---------------------------------------
Surcharge: 875.00 euros net
Brackets: packages
15 mm staples (package of 2000 pcs.): price 18.40 euros
12 mm staples (package of 3000 pieces): price 27.60 euros
10 mm staples (package of 3000 pcs): price 27.60 euros
7 mm staples (package of 4000 pcs): price 41.00 euros
4 mm staples (package of 6000 pcs.): Price 62.00 euros
Dimensions and weights
---------------------
Jumbo Automatic E.C 470x370x300mm, 35kg
Working table 32 kg
All prices net. plus statutory VAT
Ex works plus packaging and shipping
(technical data according to the manufacturer - without guarantee!)
