| Détails de l'offre | |
| Numéro d’entrepôt | 1305-6751 |
| Type de machine | Machines à dégauchir |
| Marque | FIMAL |
| Modèle | PF 530 N Partnership Edition |
| Année de construction | neu |
| Type de commande | konventionell |
| Lieu d’entreposage | ab Werk |
| Pays d’origine | Italien |
| Délai de livraison | Nach Absprache |
| Base de fret | ab Werk |
| Largeur de travail | 530 mm |
| Longueur de la table | 3.000 mm |
| Nombre des rabots | 4-TERSA St. |
| Puissance du moteur | 5,5 kW |

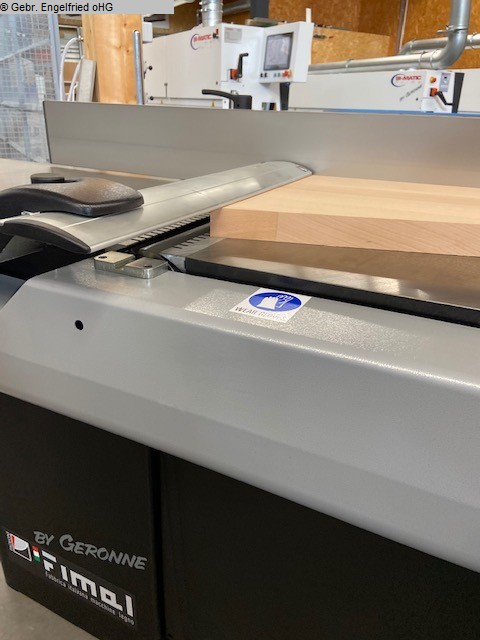

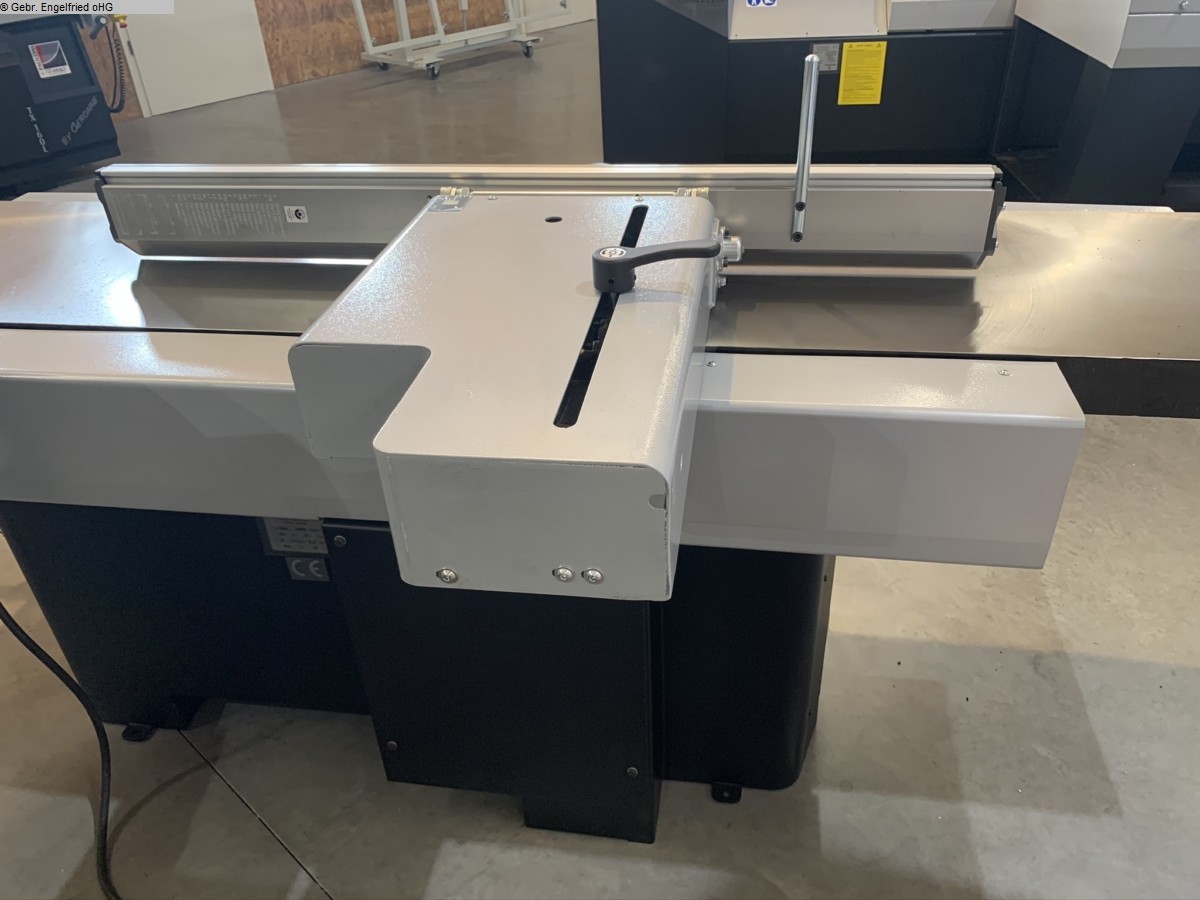

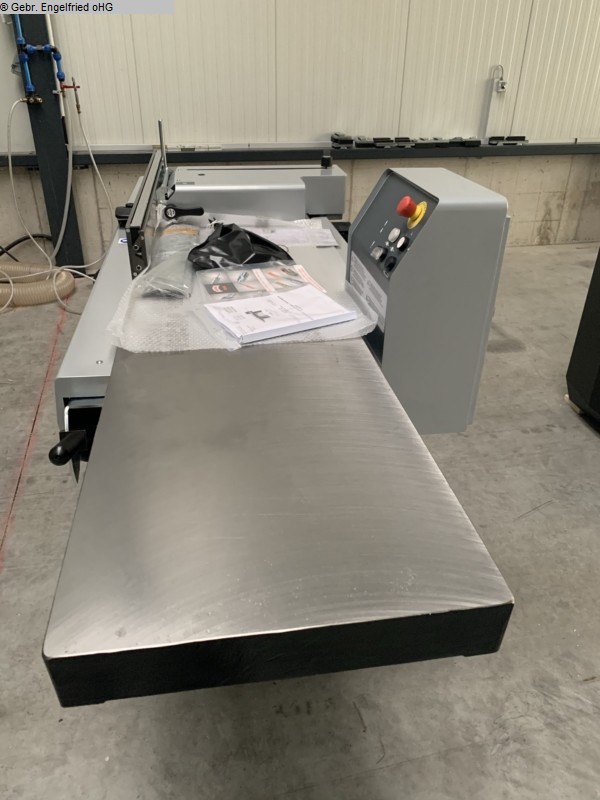

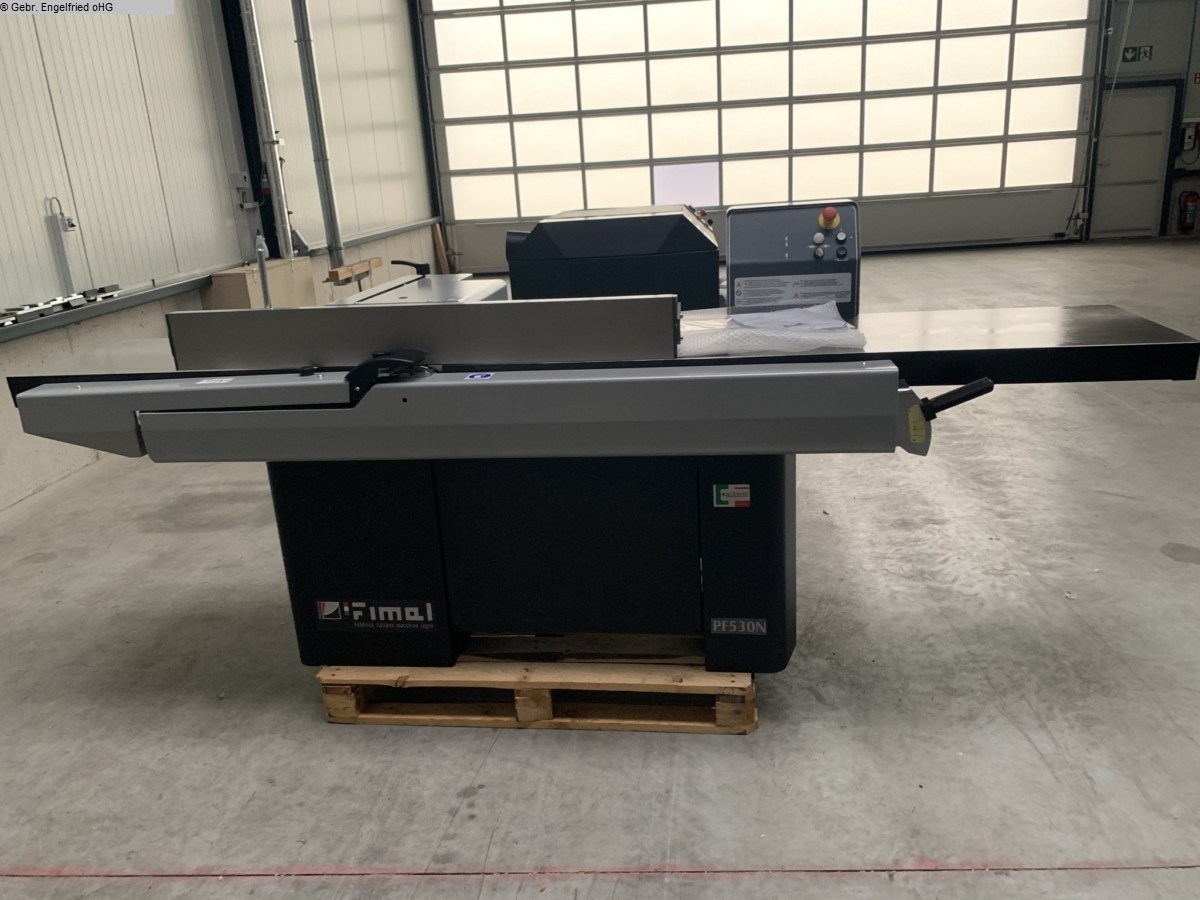

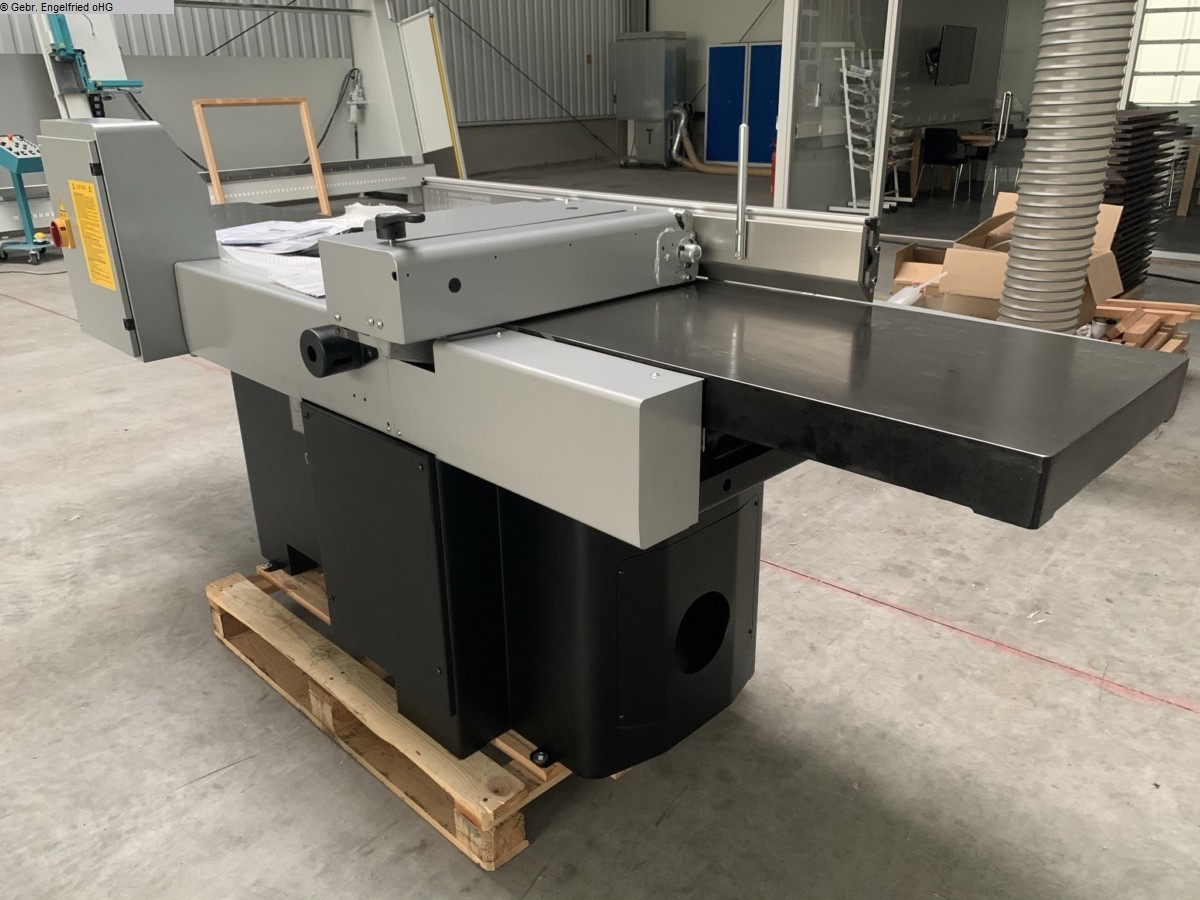

FIMAL surface planer type PF 530 N
---------------------------------------
NEW MACHINE "Partnership Edition"
Technical specifications:
---------------------------------------
Planing table dimensions: 3,000 x 530 mm
Feed table length: 1,800 mm
Dressing fence dimensions: 1,500 x 175 mm
Swivel range stop: 0 - 45 °
4-knife cutterblock system TERSA d = 120mm: 5,000 rpm
Max. Chip removal dressing according to CE: 8 mm
Motor 380 volts / 50 Hz .: 5.5 kW
Sound level according to EN 27960: 82.9 - 88.9 dB (A)
Basic equipment:
Electrics according to CE standards
Magnetic brake
Extraction nozzle d = 150mm
Bridge protection

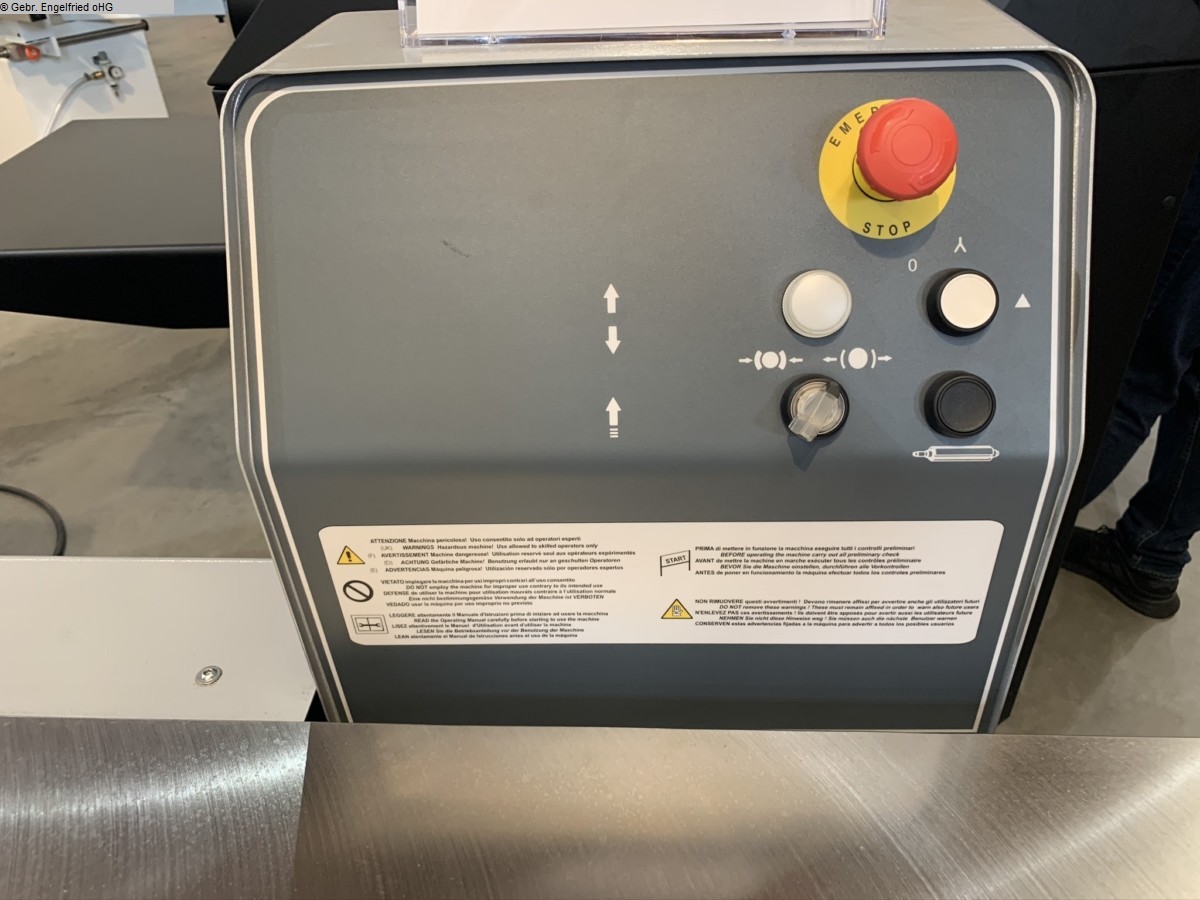

control panel operated above

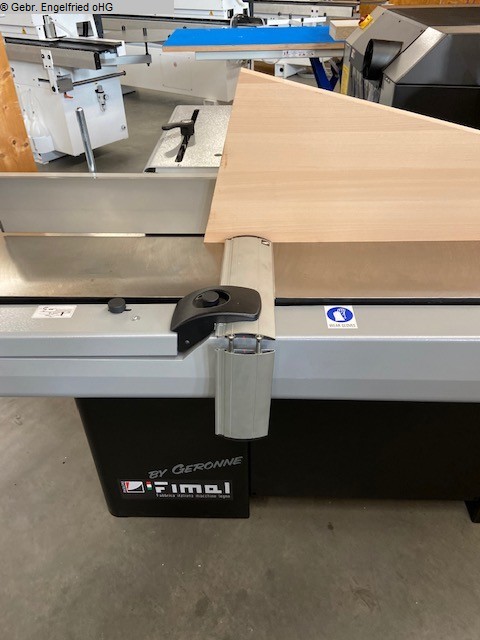

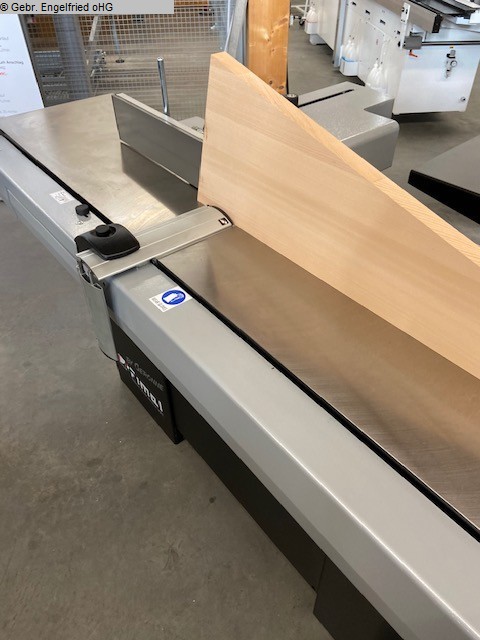

Original AIGNER aluminum stop with integrated auxiliary stop
---------------------------------------
Special offer from stock:
---------------------------------------
All prices plus VAT / plus Freight and assembly according to expenditure
Please also note the special offer together with FIMAL
Thickness planer SP 63 A
(Technical information according to the manufacturer - without guarantee!)
