| Предложение в детялях | |
| Инвентарный номер | 1305-2797 |
| Тип оборудования | 4 side moulder |
| Производитель | SCM |
| Тип | Superset NT mit Rueckfuehrung |
| Год производства | 2017 |
| Тип управления | konventionell |
| Место нахождения | Oberkochen |
| Страна происхождения | Italien |
| Срок поставки | after arrangement |
| Условия отгрузки | ex warehouse |
| Number of spindles | 5 St. |
| Working width | 240 mm |
| Working height | 120 mm |
| Length of the planing table | 2500 mm |
| Feed motor | 4 kW |
| Feed speed | 6-36 m/min. |
| Weight | ca. 3500 kg |

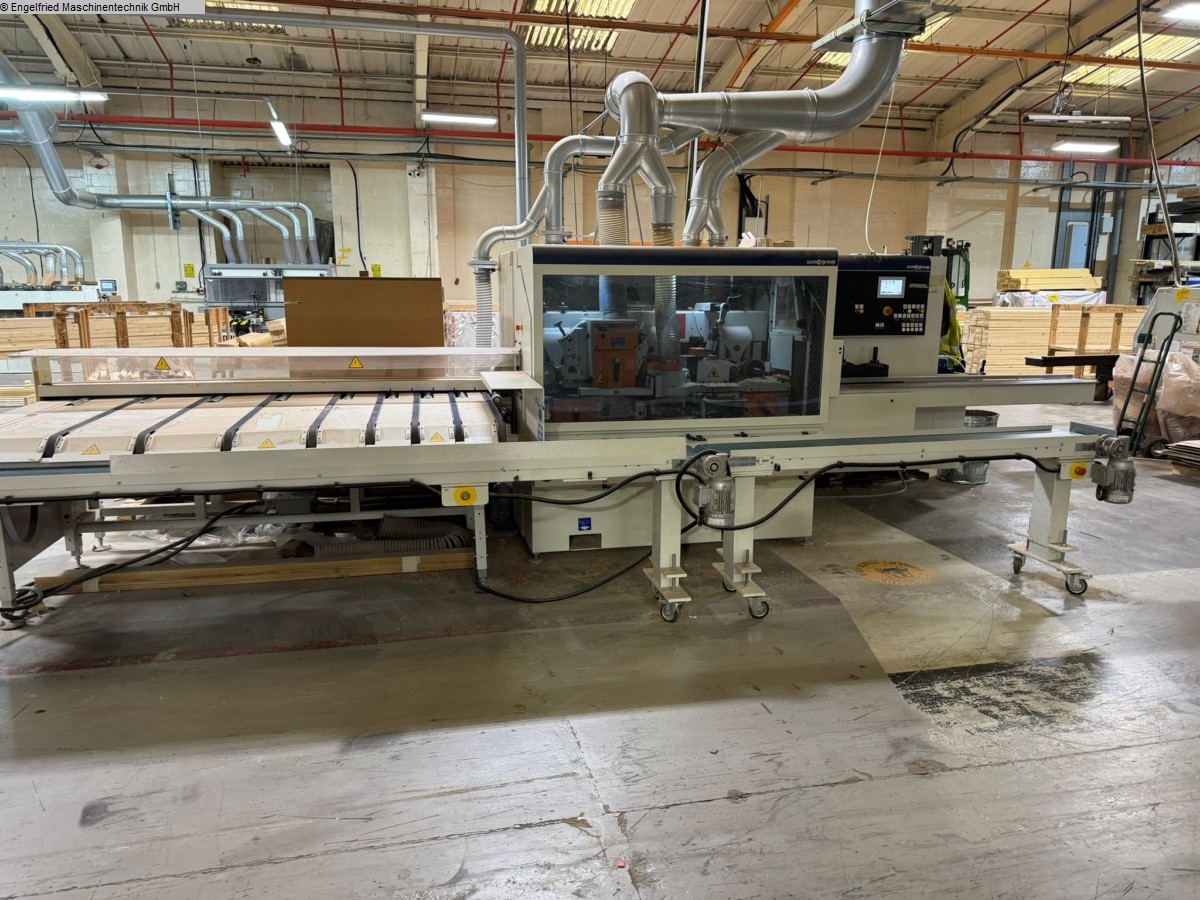

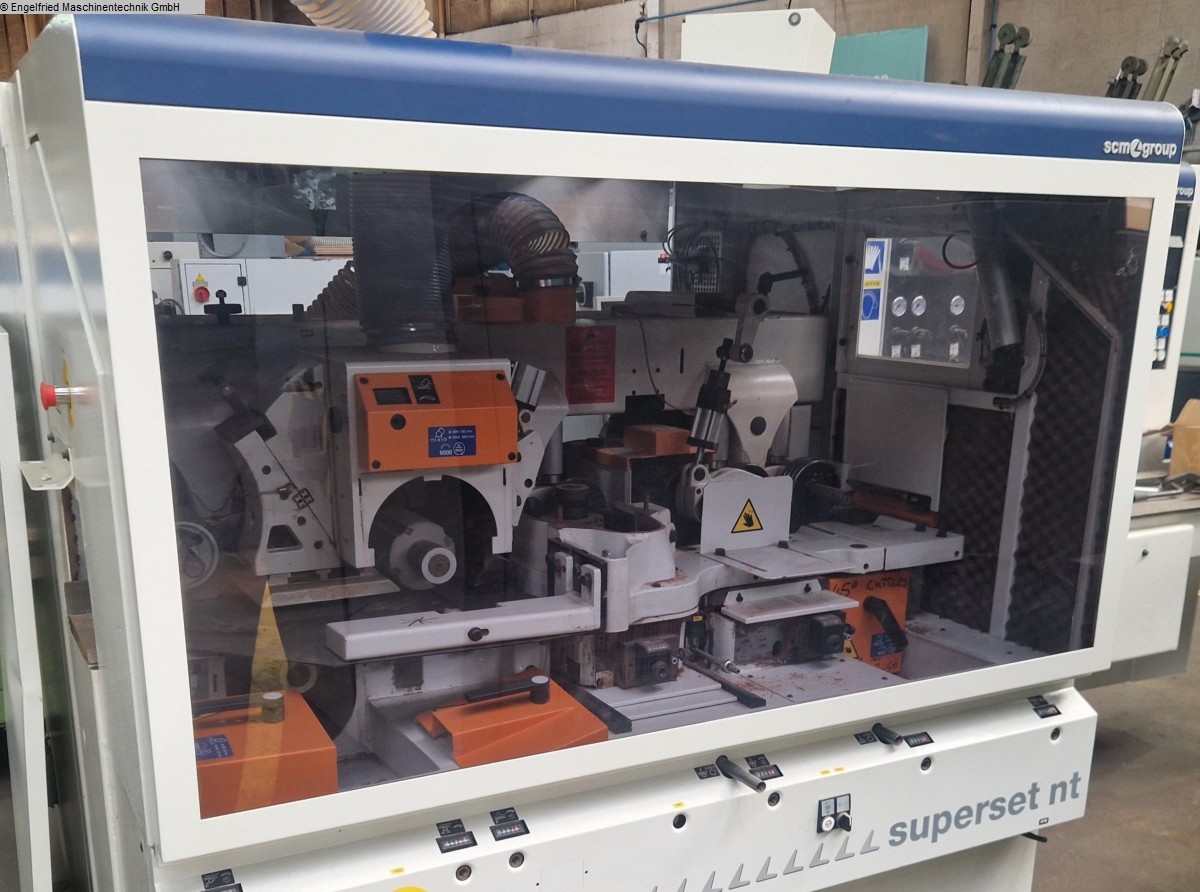

SCM Superset NT with workpiece return
----------------------------------
The machine will be cleaned and completely checked.
Brief Summary:
----------------------------------
- 5 spindles
- Powerful motors
- Left and upper spindles controlled for width and height
- With workpiece return to the operator
1st spindle
----------------------------------
First lower horizontal spindle
Motor with brake 7.5 kW
Diameter 40 mm
Speed ??6,000 rpm
2nd spindle
----------------------------------
First right vertical spindle
Motor with brake 7.5 kW
Diameter 40 mm
Speed ??6,000 rpm
T-set quick-clamping system
3rd spindle
----------------------------------
First left vertical spindle
Motor with brake 7.5 kW
Diameter 40 mm
Speed ??6,000 rpm
T-set quick-clamping system
Electronic horizontal positioning / motorized width adjustment
4th spindle
----------------------------------
First upper horizontal spindle
Motor with brake 11.0 kW
Diameter 40 mm
Speed ??6,000 rpm
T-Set quick-clamping system
Electronic radial positioning / motorized height adjustment
5th spindle
----------------------------------
Second lower horizontal spindle
Motor with brake 7.5 kW
Diameter 40 mm
Speed ??6,000 rpm
T-Set quick-clamping system

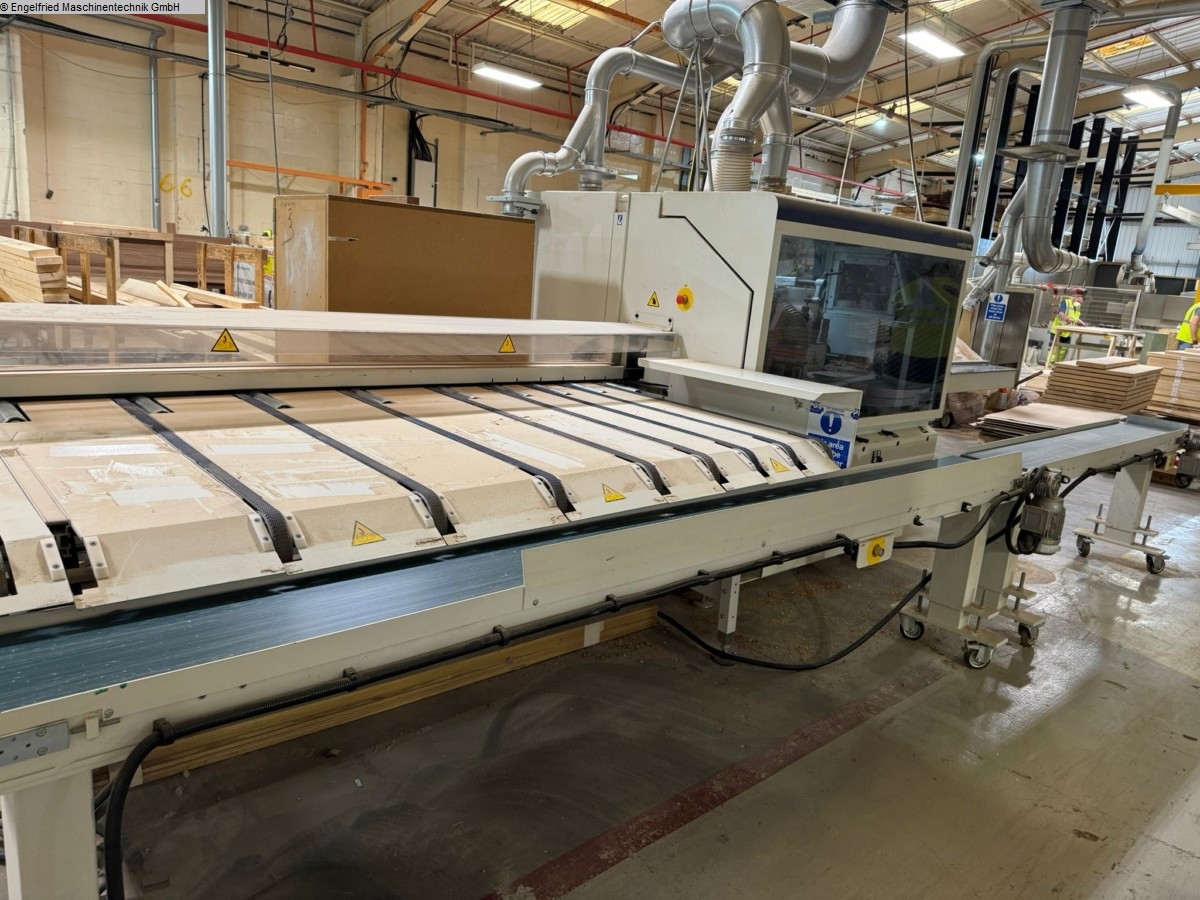

Includes workpiece return system
Includes existing used planer heads.
(Technical specifications according to the manufacturer - without guarantee!)
