Small-scale window manufacturing consisting of:

--------------------------------------------------
1) Haberkorn FZS1 slotting machine. Price: €12,500

2) Okoma SF3F table milling machine with glazing bead saw. Price: €4,000

3) Oertli tooling for the Haberkorn and Okoma machines. Price: €7,500

1 set of wooden windows IV 68/78/88 and 1 set of wood-aluminum windows IV 68/78, manufactured in 2011

4) Götzinger OBM Plus corner hinge and olive drilling machine, Maco MultiMatic hardware.

Price: €7,000

(Hardware can be converted for an additional charge upon request!)
--------------------------------------------------
Technical Manufacturer's Description:

- Haberkorn FZS1 slotting machine with automatic feed,

- Stepless height adjustment D 40 mm
Crosscut saw:

- Spindle arrangement: top
- Three-phase motor: 3 kW
- Spindle diameter: 30 mm
- Speed: 2800 rpm
- Saw blade diameter: 400 mm
- Automatic brake with speed monitoring
- Pneumatic horizontal positioning, manually adjustable
- Guard and dust extraction hood with extraction port diameter: 100 mm

Slotting spindle D 40 mm:

- Power: 7.5 kW
- Speed: 4200 rpm
- Working length: 252 mm
- Maximum tool diameter: 340 mm
- 220 mm stroke, stepless height adjustment via Precision ball screws

- Guard and dust extraction hood with extraction port diameter: 180 mm

- Automatic brake with speed monitoring

Studio table:

- Swivel range +/- 65 degrees
- Automatically changing counterweight (programmable)
- Pneumatic clamp
- High-precision electric degree indicator
- Automatic length compensation
- Counterweight at every angle setting in the cutting plane

Optional equipment:

- Laser for workpiece positioning
- Pneumatic saw position

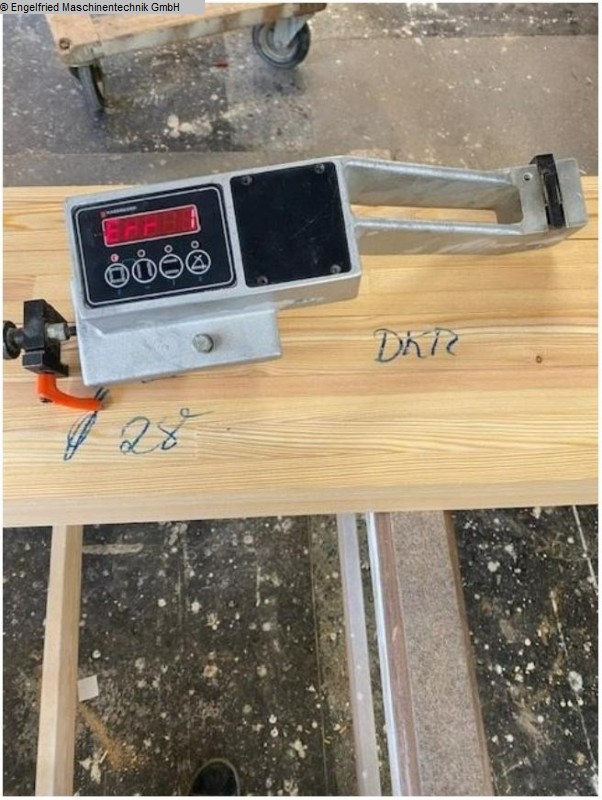

- Length stop LA 2500 mm + 1850 extension

--------------------

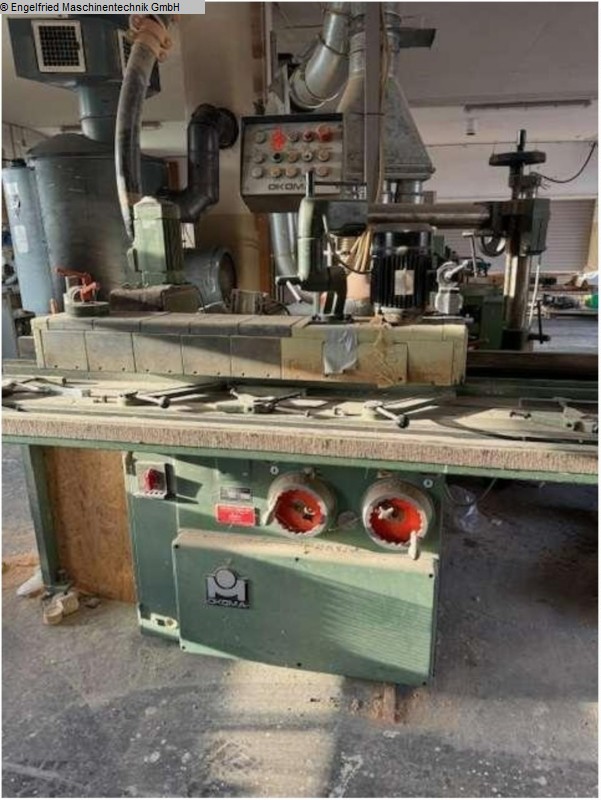

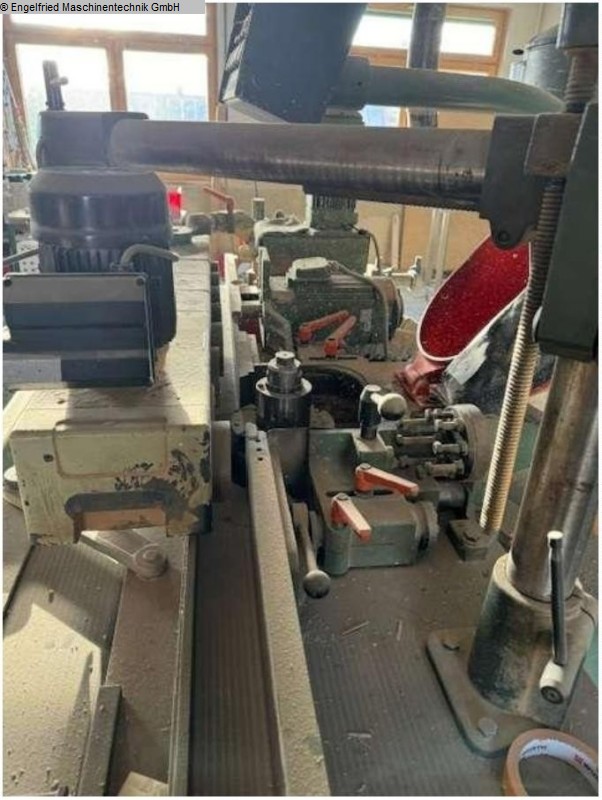

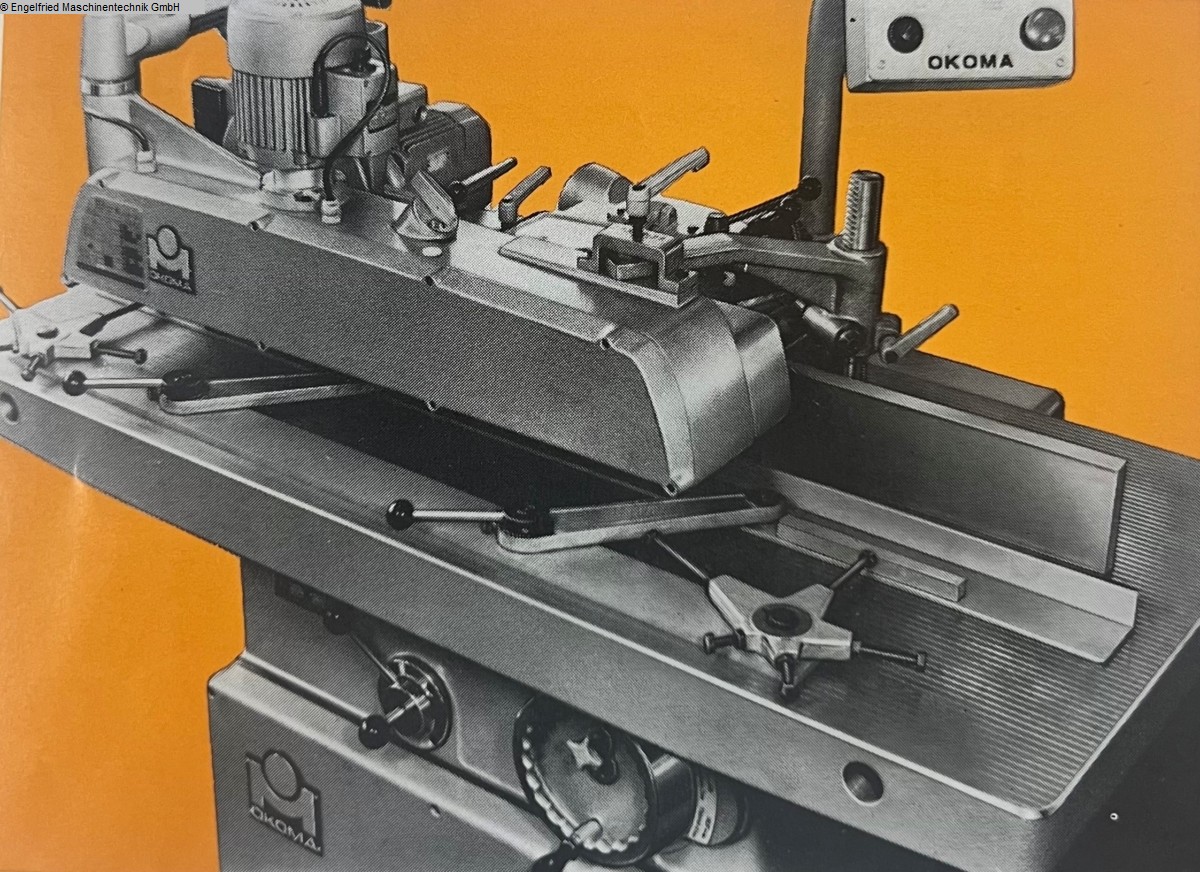

2) Okoma SF3F table milling machine with lifting spindle, 3 tools
- Dust extraction ports 2 x 120 mm
- Spindle length 270 mm
- Counter gauge with fine adjustment and turret
- Triple stroke, maximum stroke height 90 mm
- Glass strip cutting saw with protective and extraction hood, 80 mm diameter

- 8-roller feed unit with stand and hold-down arm, required for
the glass strip cutting saw attachment

- Pneumatically controlled dispensing unit for edge drive, speed 6000 rpm

- 2 x 3 kW motors
- Mounting diameter 30 mm

--------------------

3) Oertli tools for Haberkorn and Okoma machines

- 1 set of wood window IV 68/78/88

- 1 set of wood-aluminum window IV 68/78

Tools are sold in the condition, scope, and with accessories as currently available in our stock. Note regarding window cuts, tool drawings, and tool system listings:
Engelfried GmbH does not guarantee that the tools actually available correspond to the systems mentioned and drawn.


[Note regarding window cuts, tool drawings, and tool system listings:] --------------------

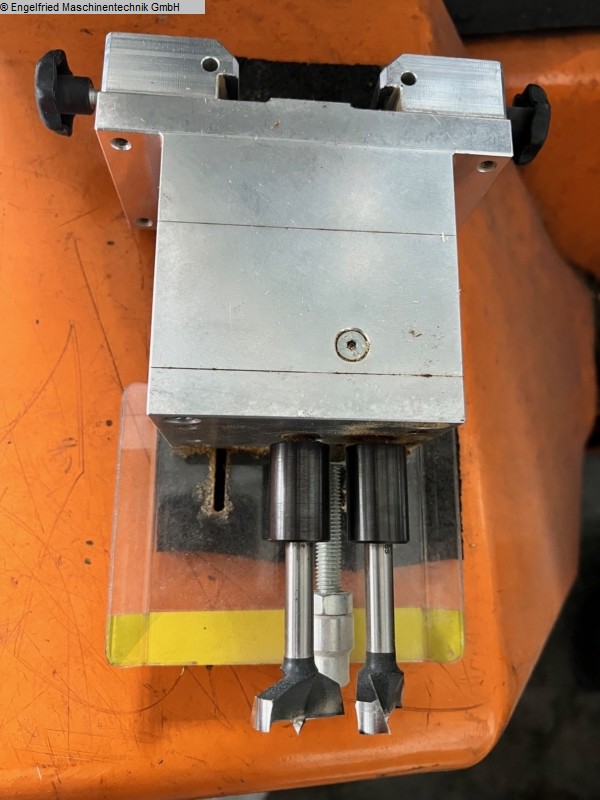

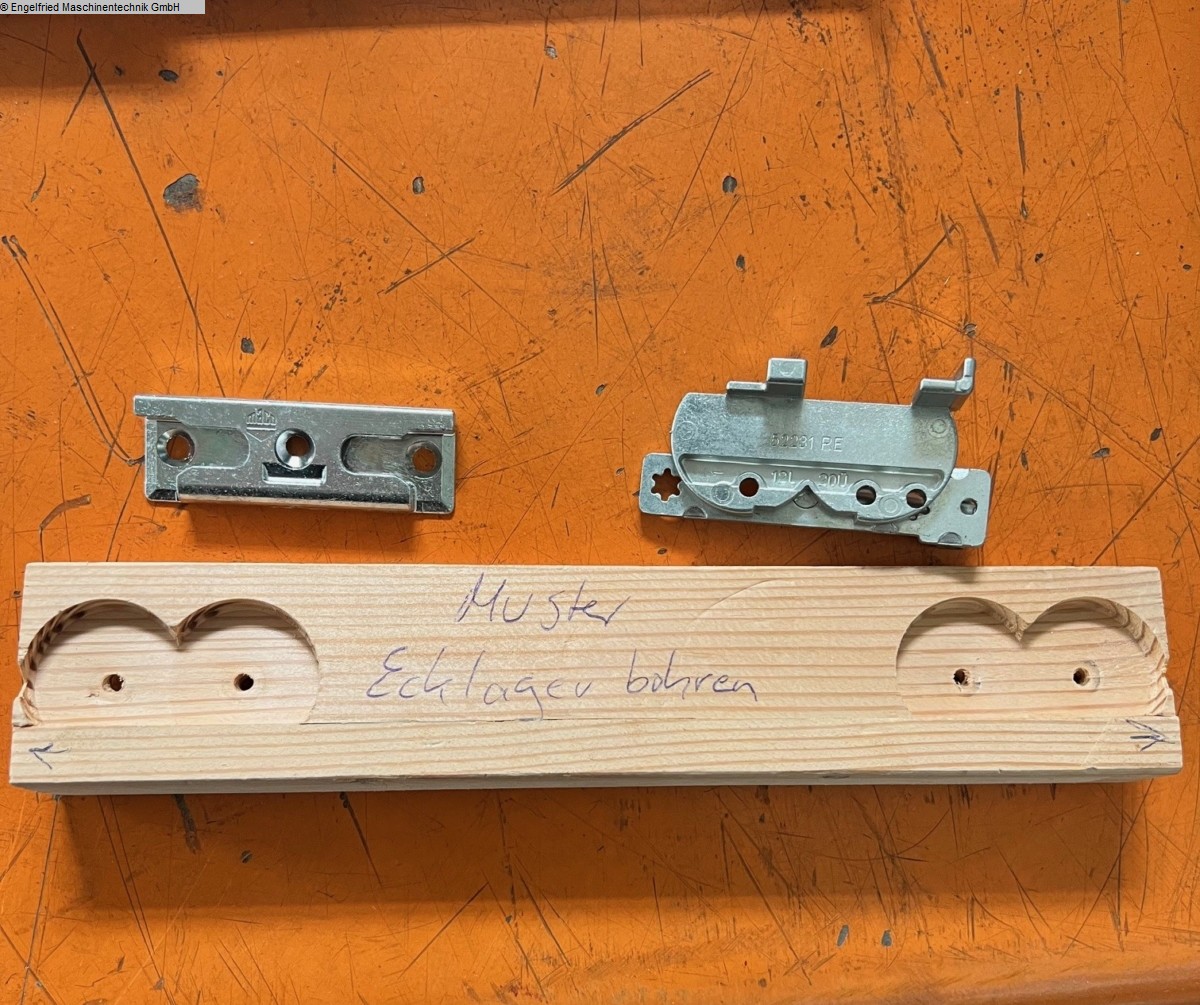

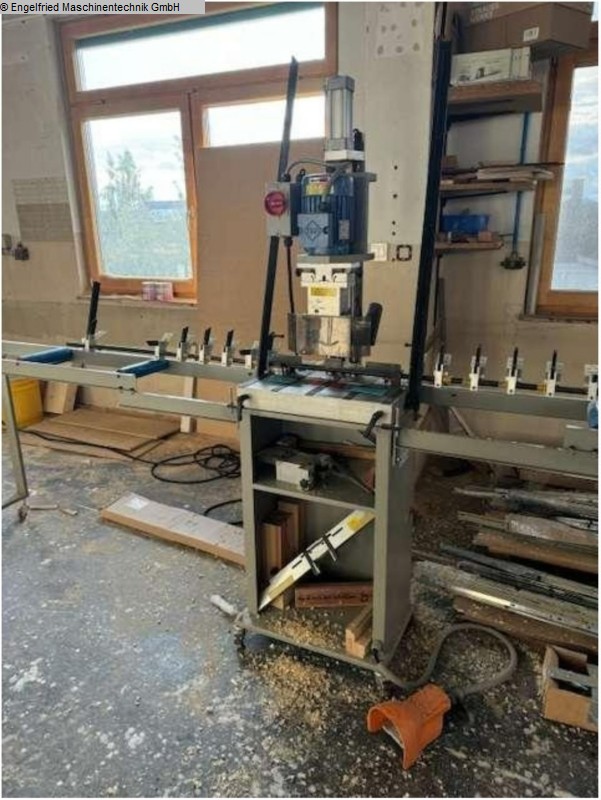

4) Götzinger OBM Plus Corner Hinge and Olive Drilling Machine

-Corner and scissor hinges + handle olive drilling

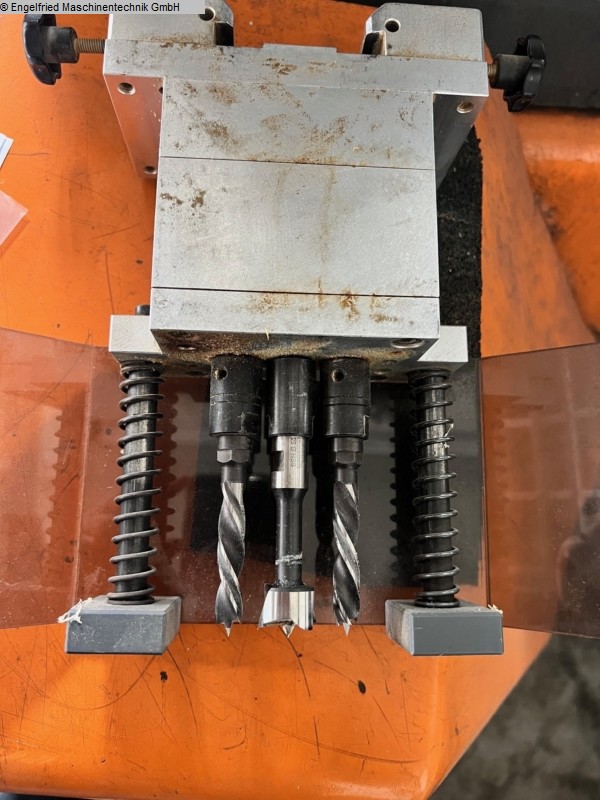

-Vertical drilling unit with:

-Quick-change drill head device
-Pneumatic feed via foot valve
-1x Olive drill head 24 mm
-1x Double-head corner hinge
-Maco MultiMatic fitting
-1x Adjustable flip stop, left, with 6 stops
-1x Adjustable flip stop, right, with 6 stops
-1x Machine stand complete with storage tray
-220/400 V, 60 Hz, 1.3 kW
-1x Roller conveyor approx. 1 m long with 2 rollers
-1x Roller conveyor approx. 1.5 m long with 3 rollers
--------------------------------------------------
Price of the above machines on request!

Plus packaging and shipping
--------------------------------------------------
(Technical specifications according to the manufacturer - without guarantee!)
