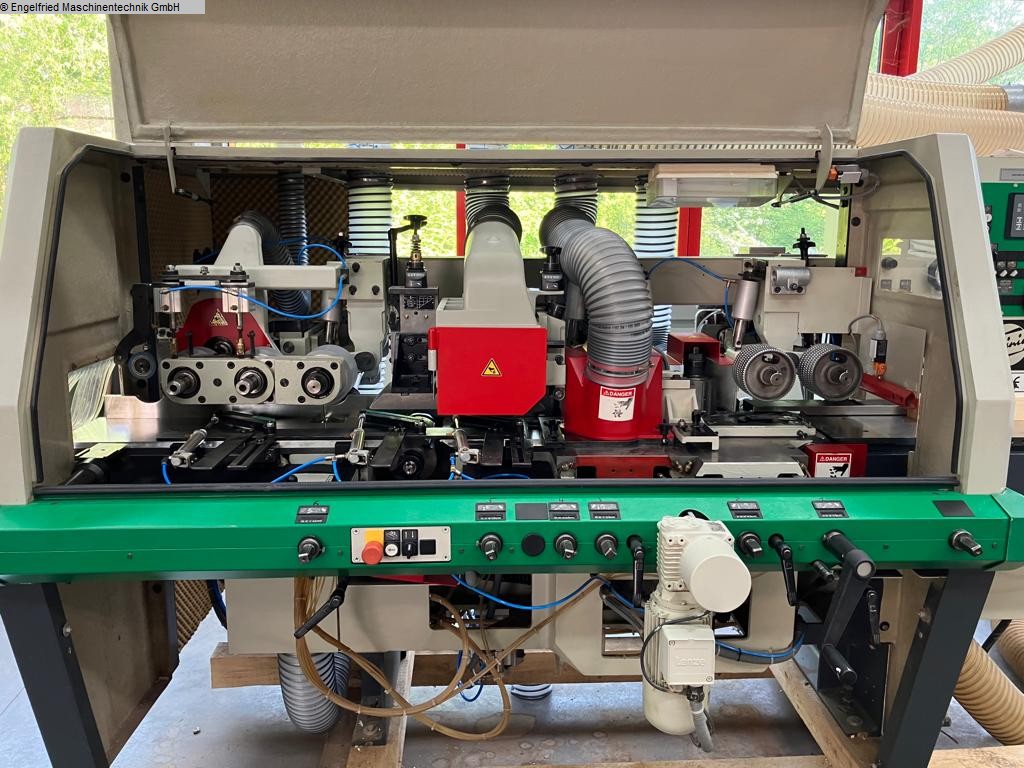

Weinig Profimat 23 four-side planer, window version with
glazing bead removal or can be used as a grooving spindle
ATS control and program control
------------------------------------
Machine was factory overhauled by Weinig in 2024.

Technical Specifications Summary
(Please inquire about any additional accessories included)
--------------------------------------------------------

General
------------------------------------
> Working width: 230 mm
> Working height: 120 mm
> Number of spindles: 6
> Planer table length: 2500 mm
> Feed motor: 3 kW
> Feed speed: 5-24 m/min
> Total power requirement: 27 kW
> Dimensions: 3900 x 2200 x 2000 mm
> Machine weight, approx.: 2500 kg

Spindle arrangement
------------------------------------
> Spindle 1: bottom
> Spindle 2: right, pneumatically timed up-down
> Spindle 3: left
> Spindle 4: top
> Spindle 5: bottom
> Spindle 6: pneumatically timed up-down glazing bead saw

Spindle Description
------------------------------------
> Spindle 1: 4 kW, 6000 rpm, 40 mm diameter
> Spindle 2: 7.5 kW, 6000 rpm, 40 mm diameter
> Spindle 3: 6000 rpm, 40 mm diameter
> Spindle 4: 5.5 kW, 6000 rpm, 40 mm diameter
> Spindle 5: 4 kW, 6000 rpm, 40 mm diameter
> Spindle 6: glazing bead saw 2.2 kW, 6000 rpm, 40 mm diameter

Additional Features
------------------------------------
> Can be used for glazing bead cutting or as a grooving machine
> ATS control, automatic 2-axis positioning for width and height
(left and upper spindle) with 99-program memory
> Machine operation: Window package
Joint control of the right spindle and the glazing bead feed via
manual selector switch on the control panel
> Spindles with mechanical digital display



(Technical data according to the manufacturer - no guarantee!)
