| Offer details | |
| Stock No. | 1305-2811 |

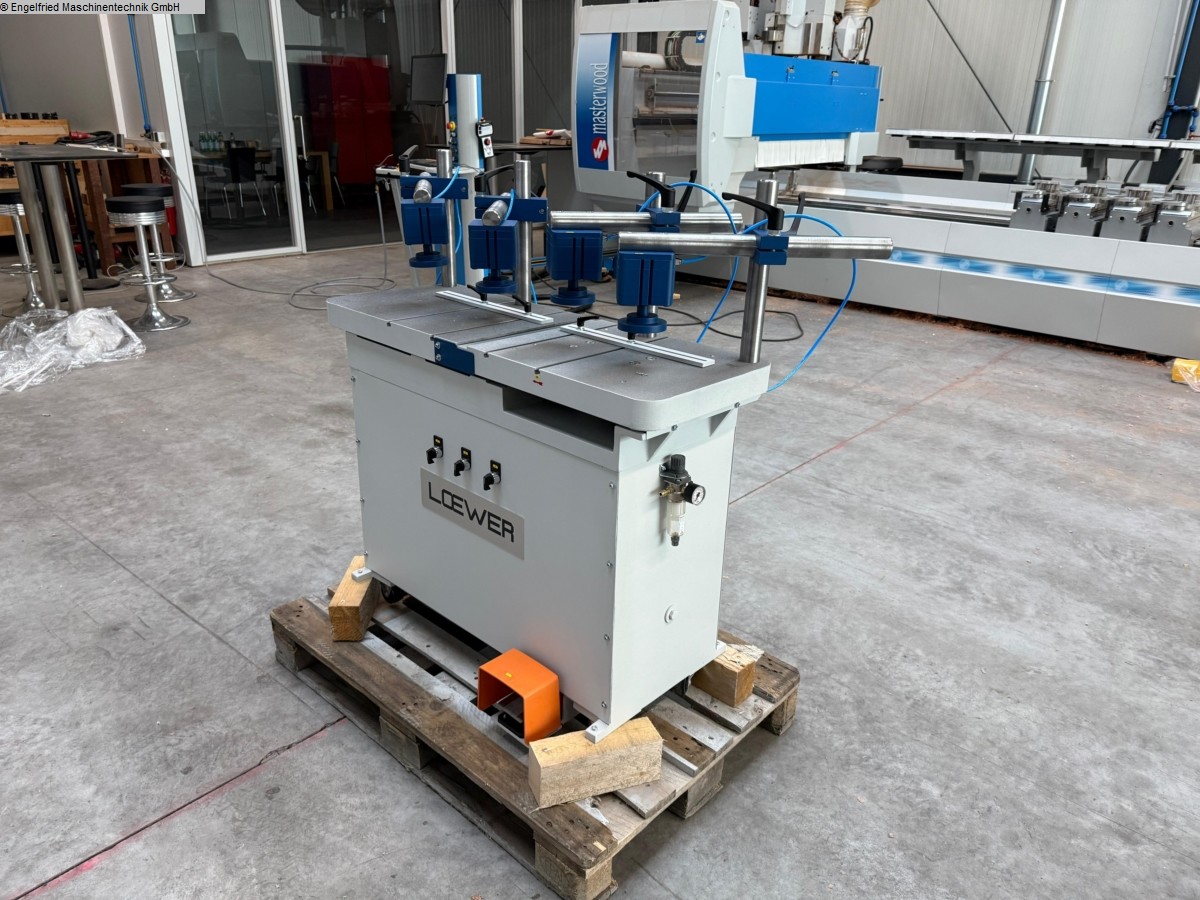

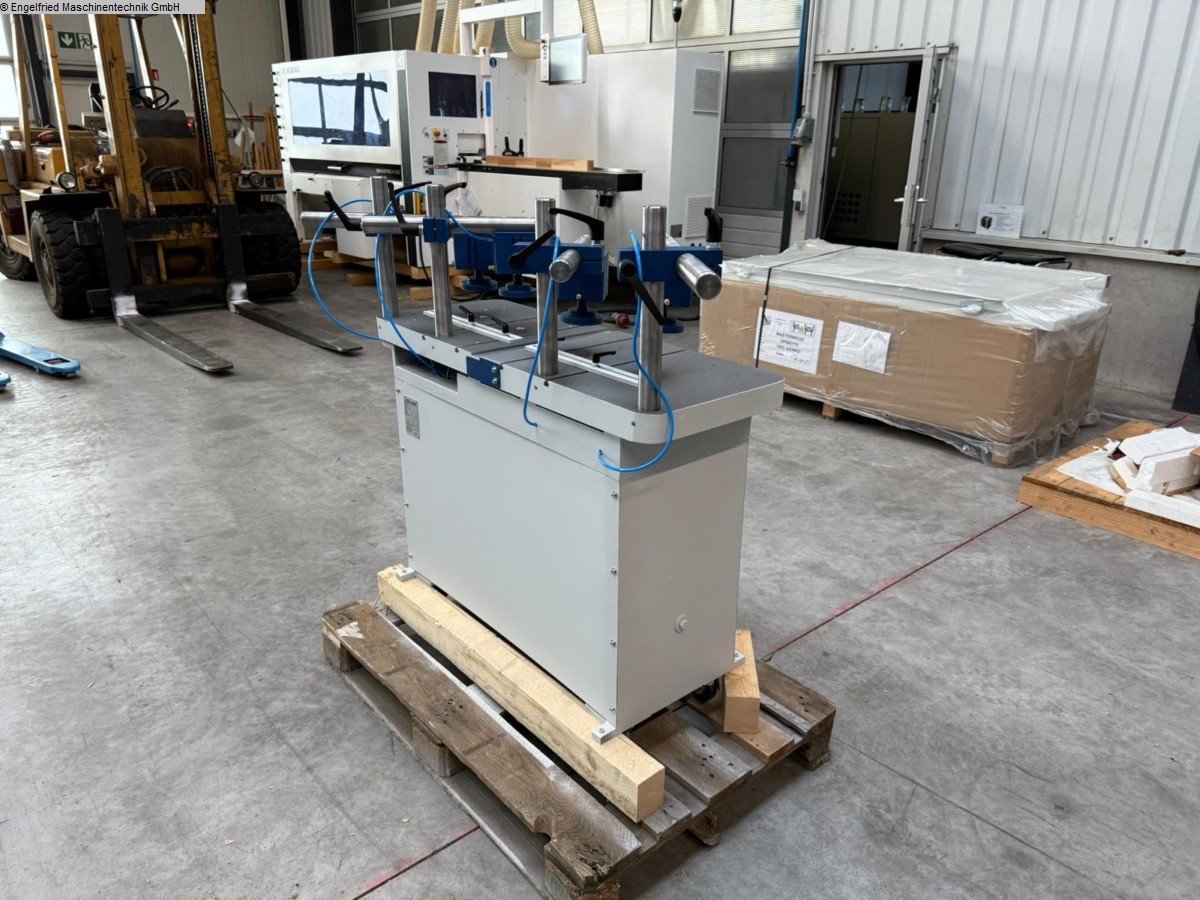

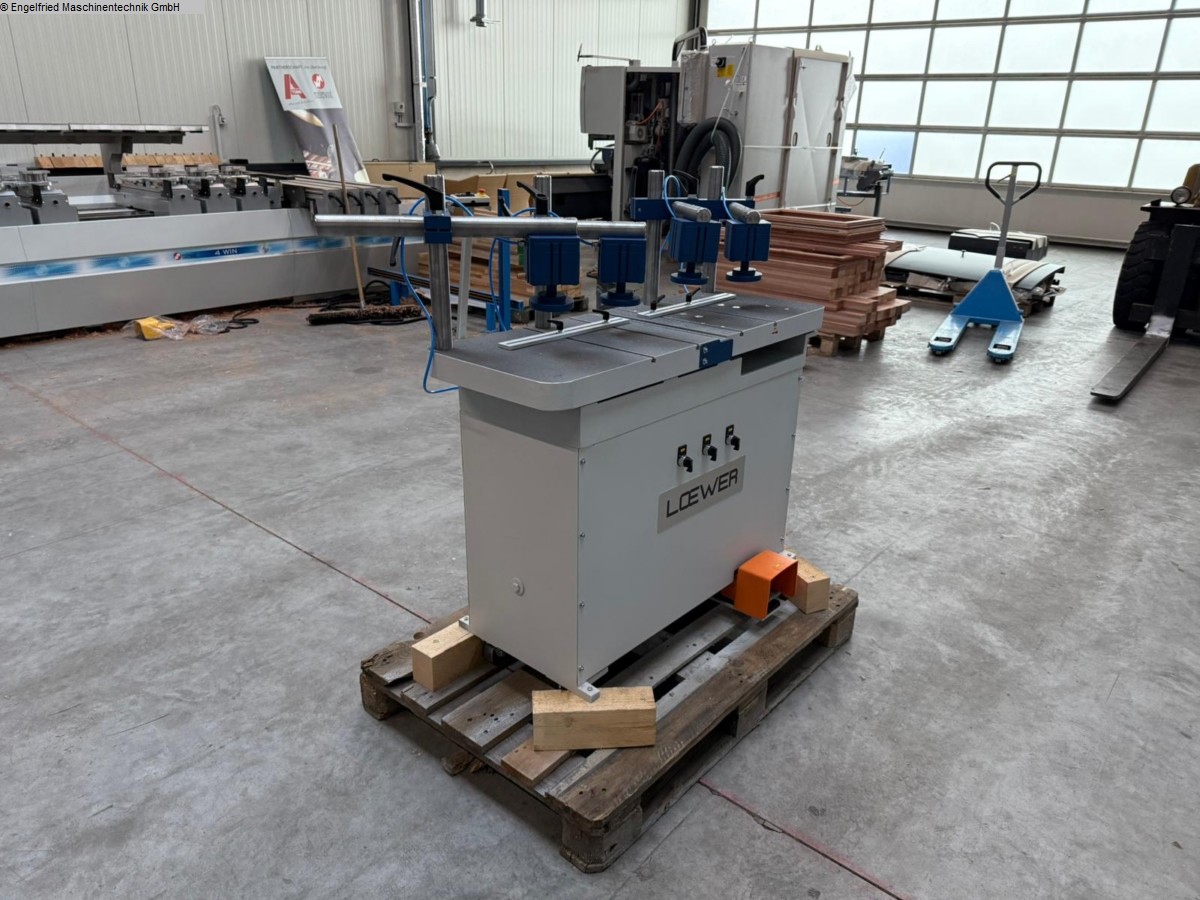

| Type of machine | Fingerjoint press |

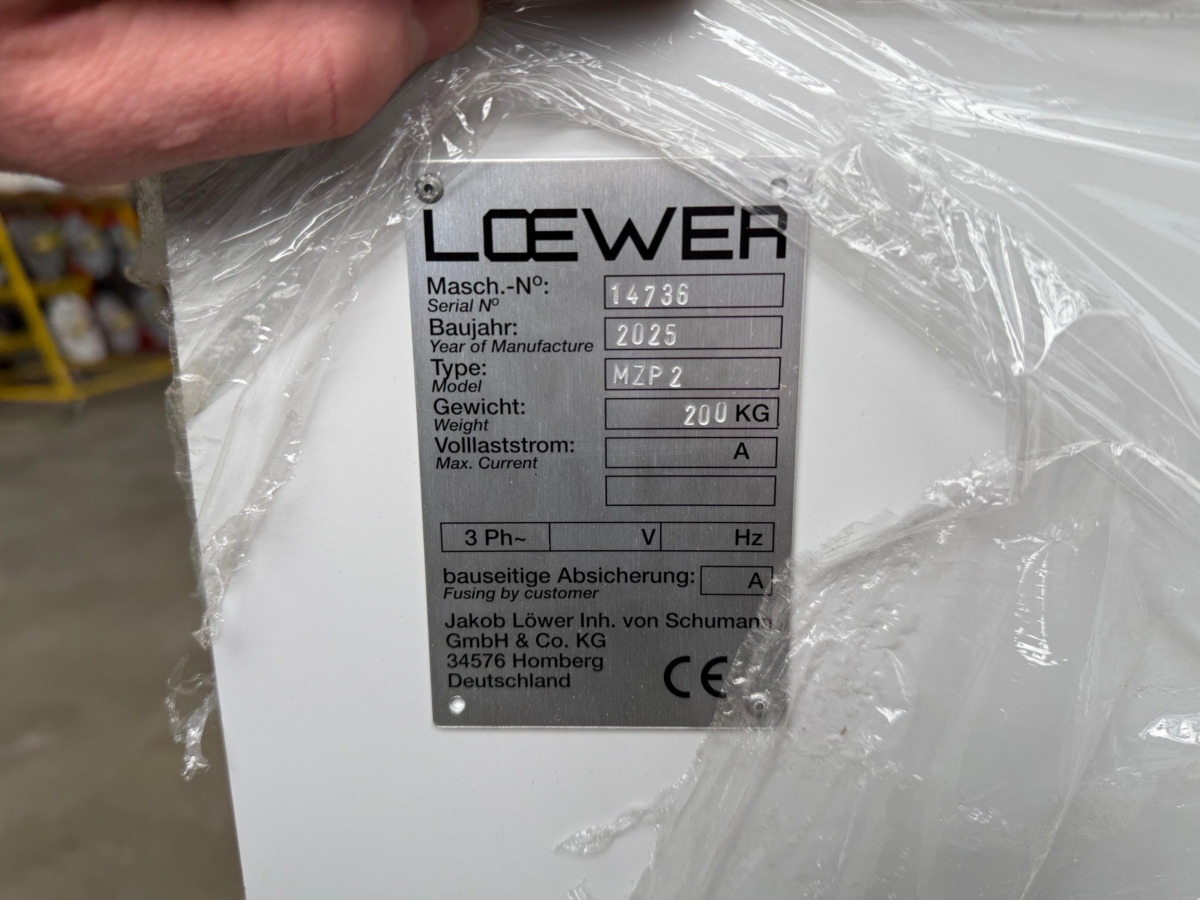

| Make | LÖWER |
| Type | MZP 2 |
| Year of production | 2025 |
| Typ of control | konventionell |
| Storage location | Oberkochen |
| Country of origin | Germany |
| Delivery time | immediately |
| Freight basis | ex warehouse |
| Table dimensions | 1000 x 400 mm |
| pneumatic clamping | 4 Stk. |
| moveable | ja_yes ja |
| loading dimensions L x W x H | 1200x800x1200 mm |
| weight | 220 kg |
For fast compression of Minizinken- or Softline compounds
especially for larger cross-sections
- Independent of the angle
- Especially suitable for arched manufacturing
- Table size 1000 x 400 mm
- Pneumatic connection 10 bar
- Air consumption 1 cdm / stroke

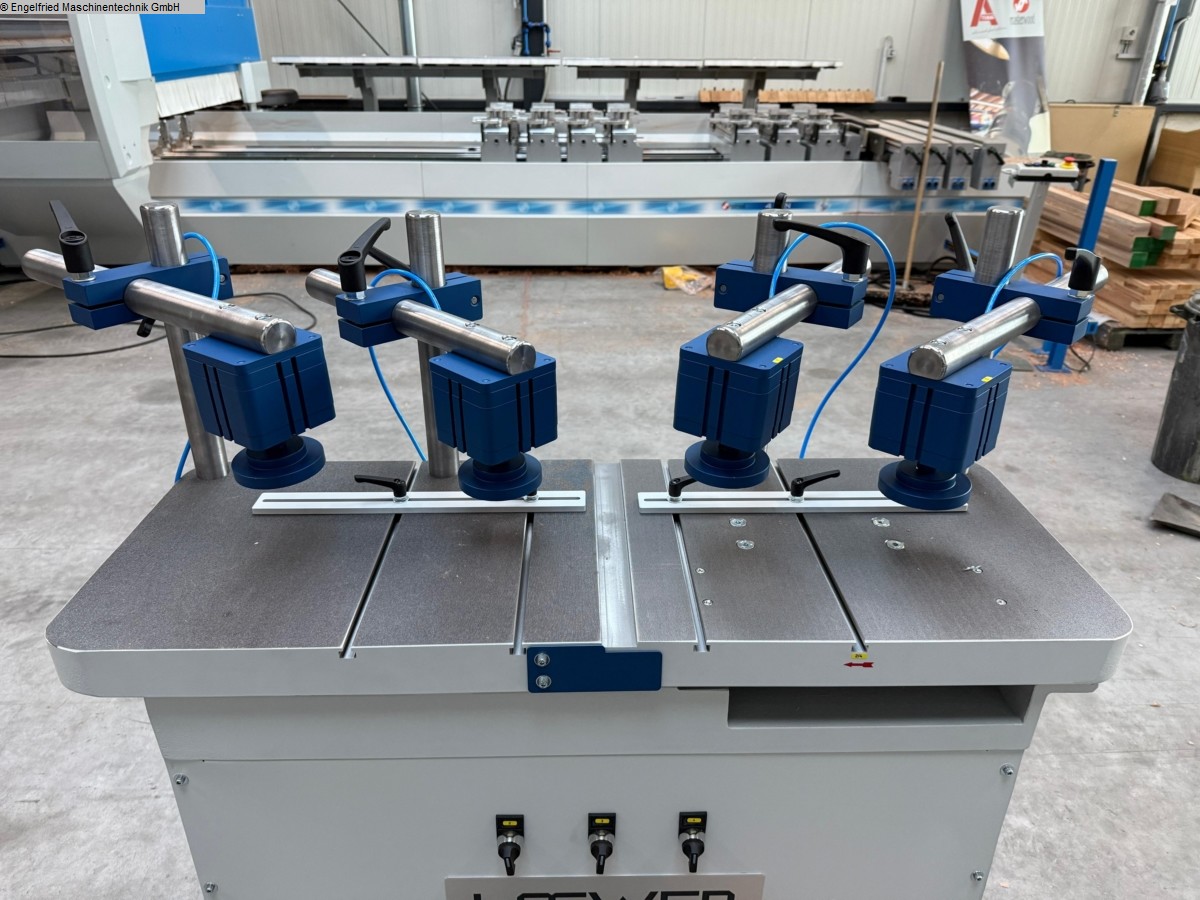

- 4 clamping cylinders for workpiece clamping
- Pairs switchable
- Right half of the table supported on hardened shafts through ball linear
bearings
- 2 pressure cylinder for linear table displacement, separately switchable
- Weight: 200 kg
- CE - execution
(Technical details according to manufacturer - without guarantee.!)
