Technical details

Additional information

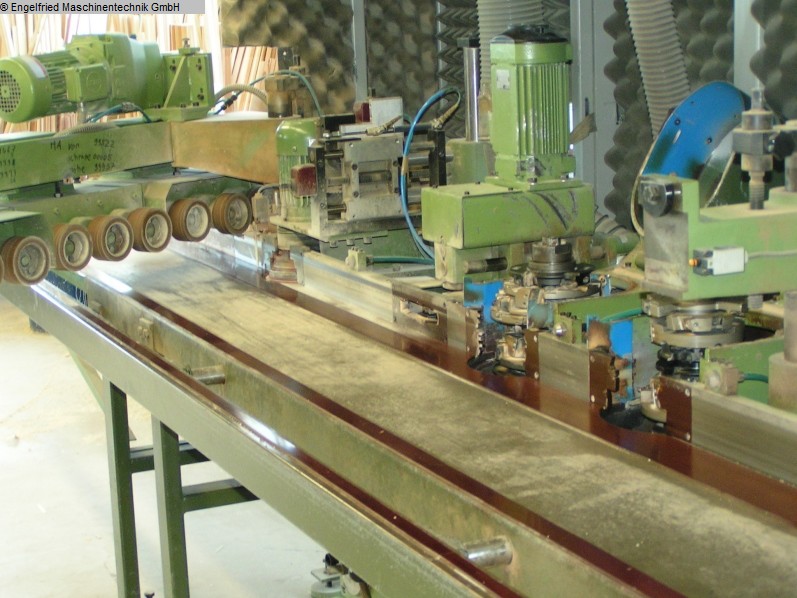

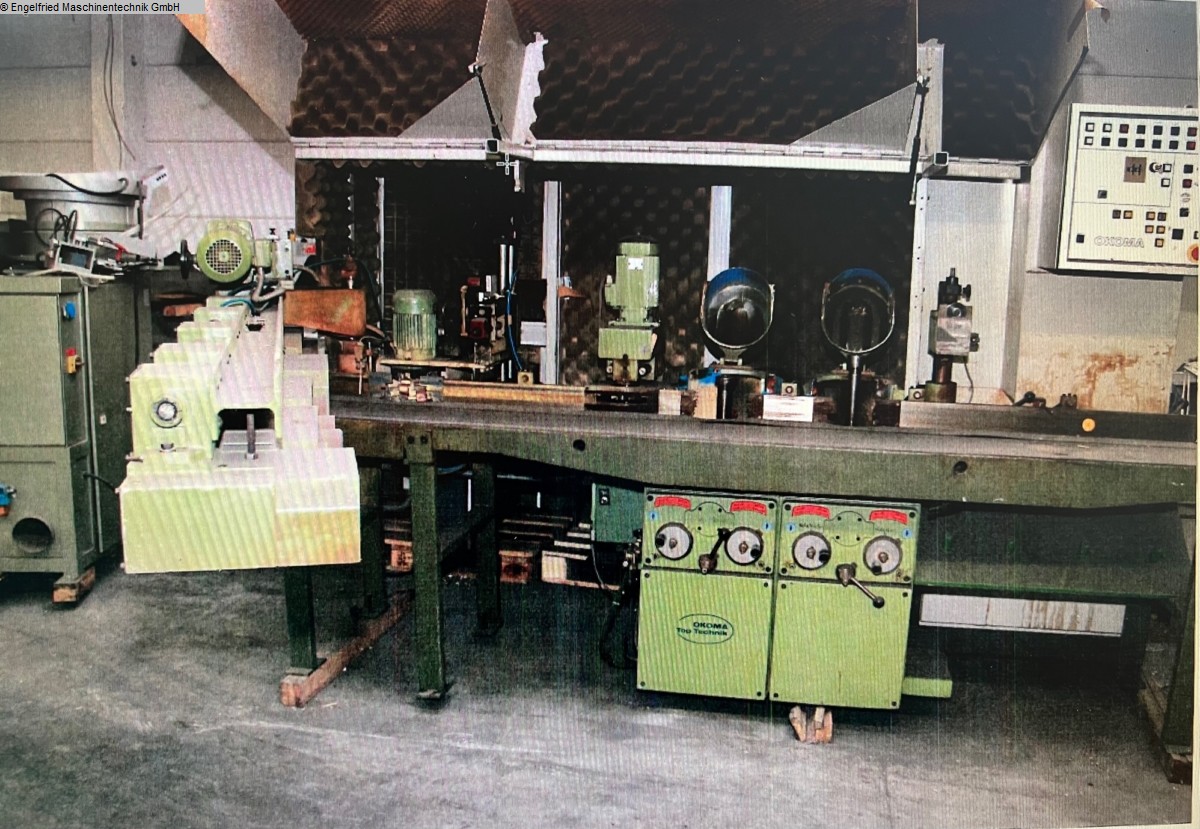

1 OKOMA folding machine model UF 2 EG
-------------------------------------
1. Energy data:

- Operating voltage: 3 phases, 380 V, 50 Hz.
- Compressed air: Air requirement: 13 NL/min.
Operating pressure: 8 bar
up. Air: according to Pneurop 6611

2. Profile spindle 1:

- Spindle arrangement: right
- Power 11 kW
- Speed ??7000 rpm
- Direction of rotation: synchronous and counter rotation
- Spindle diameter 40 mm
- Usable length 252 mm
- Tool diameter max. 230 mm
- U-movement of the profile spindle
- Positioning vertically
Drive: pneumatic cylinder 120 mm cycle
for 2 tool positions
Position sensor: limit switch

- Positioning horizontally
Drive: Pneumatic cylinder forward-back
Position sensor: limit switch

- Automatic immersion: immersion speed can be regulated for tear-free
Fold over

- Protective and suction hood with connecting piece 140 mm diameter.

3. Profile spindle 2:

- Spindle arrangement: right
- Power 11 kW
- Speed ??7000 rpm
- Direction of rotation: counter rotation
- Spindle diameter 50 mm
- Usable length 272 mm
- Tool diameter max. 230 mm
- U-movement of the profile spindle
- Positioning vertically
Drive: pneumatic cylinder 90 mm cycle
for 3 tool positions
Position sensor: limit switch

- Positioning horizontally
Drive: Pneumatic cylinder forward-back
Position sensor: limit switch
- Protective and suction hood with connecting piece 140 mm diameter.

4. Fitting milling device EG:

- Spindle arrangement on the right
- Drive: three-phase motor 3 kW
- Speed ??6000 rpm
- Spindle diameter 30 mm
- Usable length 47 mm

- Vertical positioning: none
- Positioning horizontally
Drive: Pneumatic cylinder forward-back

Position sensor: limit switch (rear only)

- Protective and suction hood with connection piece
80mm diameter

5. Stop:

- 1st stop: in front of spindle 1
manual chip removal
Quick adjustment via. parallelogram
- 2nd stop: between spindles 1 and 2
Chip removal: pneumatically adjustable
- 3rd stop: after spindle 2
Fixed stop

6. Grinder with automatic immersion and immersion

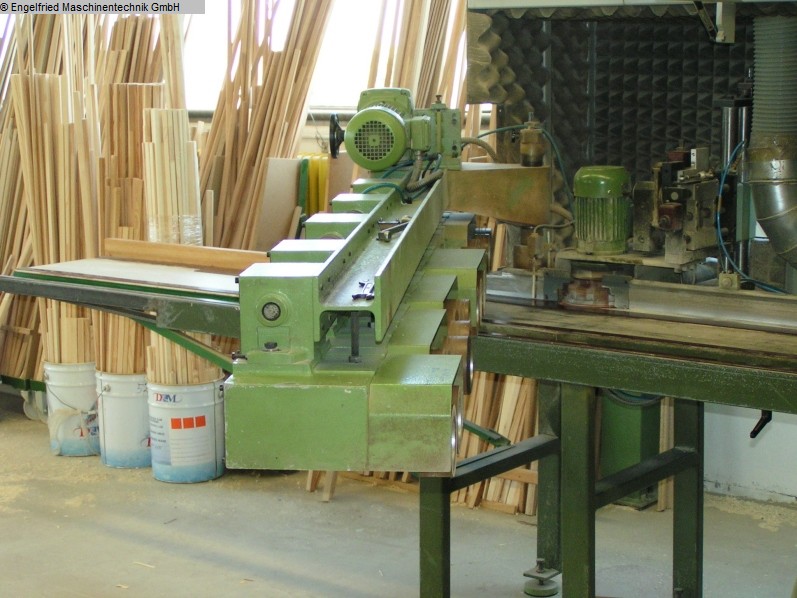

7. Feed:

- Roller distance from axle to axle 130 mm
- Roll diameter 110 mm
- Roll width 50 mm
- Feed can be swiveled away
- with pneumatic travel control

8. Support rail for milling:

- Rail length: approx. 3000 mm
- Adjustment range forward: approx. 100 - 600 mm

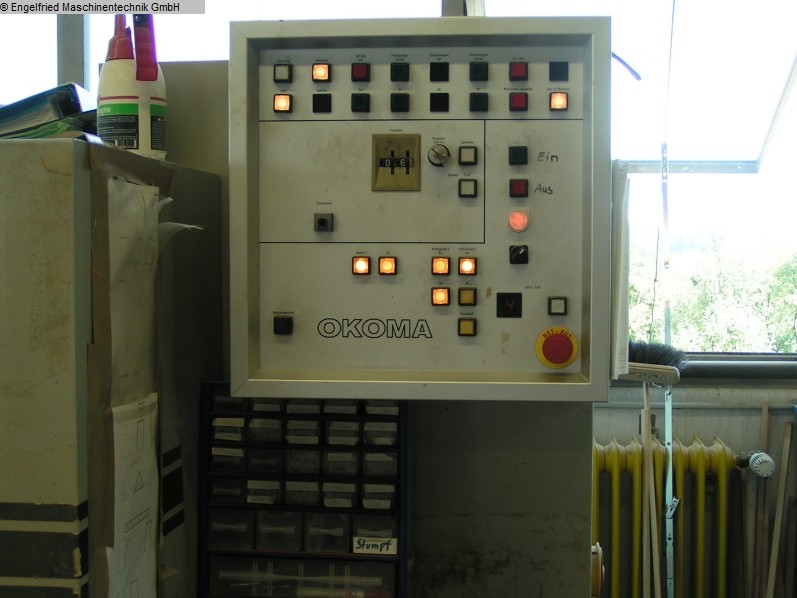

9. Electrical control:

- Programmable logic controller: Siemens electronics
PC control, 30 programs, 380 V., 50 Hz.
- Power section: Siemens S 5
- Non-contact limit switches

More pictures on request!
---------------------------
(technical data according to manufacturer - no guarantee!)
