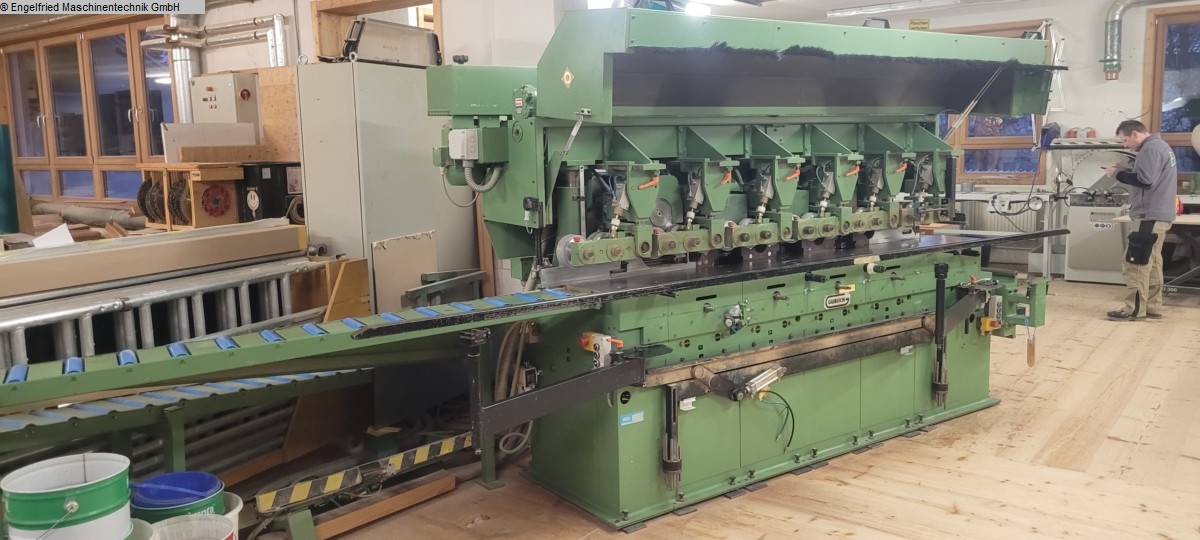

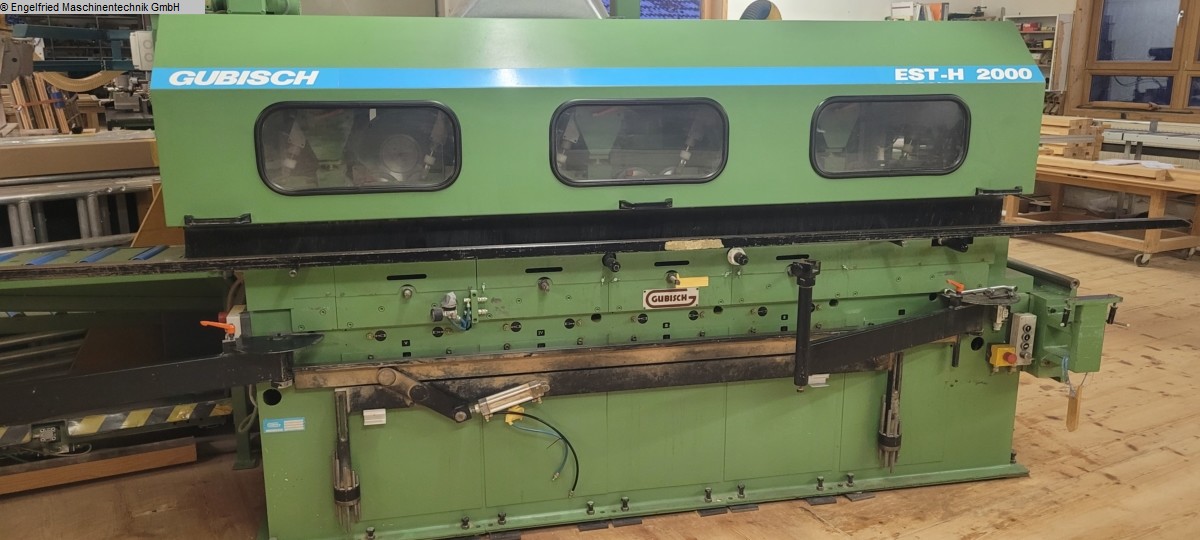

Gubisch type EST-H 2000/2
---------------------------------
Machine still in use and can be inspected!

Manufacturer's description:
---------------------------------
single-sided angle combination for window and
door production consisting of tenoning and
slotting machine, angle transfer and trimming machine

cross-cut saw:
---------------------------------
P = 3 kW
U = 3000-1
Saw diameter: 400 mm
Flange diameter: 80 mm
Adjustment: horizontal: manually adjustable,
readable via mechanical digital display

Length stop LAS
---------------------------------
Adjustment: manual
Length: extended to 3.2 m

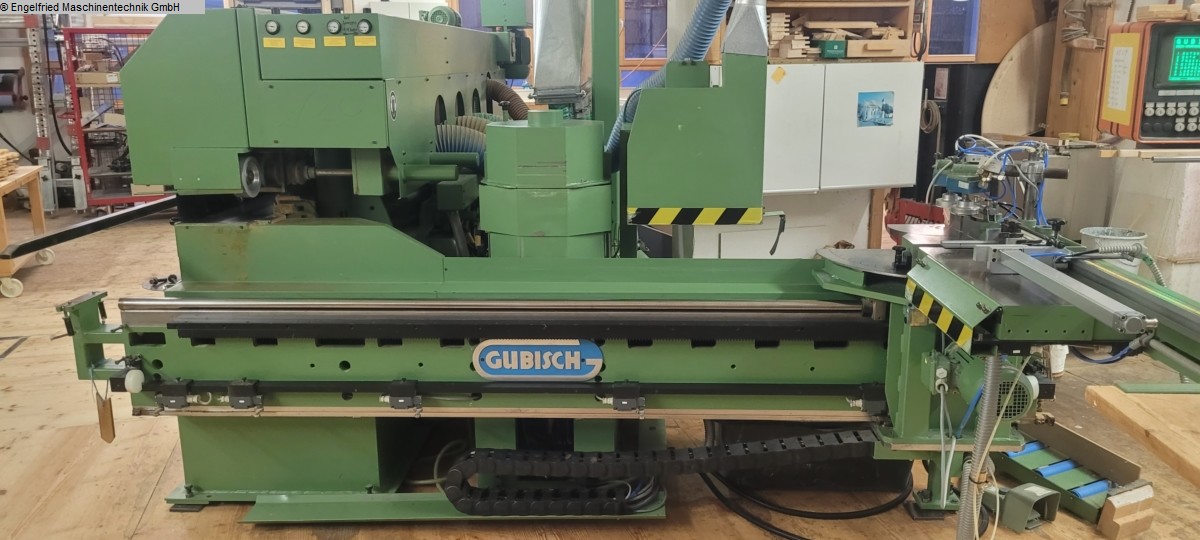

Slotting unit (cross processing)
---------------------------------
P = 9.2 kW
U = max. 4500 but depends on your
tools and is adjusted accordingly
Clamping height: 300 mm
Useful height: 300 mm
Shaft diameter: 50 mm
Largest tool diameter: 400 mm max., 240 mm min.
Adjustment: vertical
Adjustment range: vertical 210 mm under table
Number of tools: 3 tool sets of 100 mm each
provided by customer 0-height 10 mm

shortest workpiece: 320 mm + tenon
narrowest workpiece: 48 mm
widest workpiece: 170 mm

1st profile spindle
---------------------------------
Spindle position: vertical right
Function: profile production and automatic synchronization
P = 9.2 kW
U = 6000 rpm
Clamping height: 100 mm
Effective height: 100 mm
Diameter: 50 mm
Flight circle diameter: 100 - 240 mm
Adjustment range: horizontal 70 mm, tool 0-height 10 mm
Number of tools: 1 a 100 mm Clamping length max.

2nd profile spindle
---------------------------------
Spindle position: vertical right
Function: profile production
P = 9.2 kW
U = 6000 rpm
Clamping height: 300 mm
Useful height: 300 mm
Diameter: 50 mm
Flight circle diameter: 100 - 240 mm
Adjustment range: horizontal 70 mm, vertical 100 mm for tool 0-height 10 mm

3rd profile spindle
---------------------------------
Spindle position: vertical right
Function: profile production
P = 9.2 kW
U = 6000 rpm
Clamping height: 300 mm
Effective height: 300 mm
Diameter: 50 mm
Flying circle diameter: 100 - 240 mm
Adjustment range: horizontal 70 mm, vertical 100 mm for tool 0-height 10 mm
Number of tools: 3 a 100 mm clamping length max.

4th profile spindle (glazing bead sawing unit)
---------------------------------
Spindle position: horizontal top, right
P = 3.0 kW
U = 3000 rpm
Flying circle diameter: 250 mm
Clamping flange holder: 60 mm diameter
Hydraulic adjustment: automatic up/down, forwards/backwards for 1 basic height
and 1 basic depth

Further technical details
---------------------------------

Clamping table Slotting unit
---------------------------------
On ball guide bush and roller guides
Manual swivel range: 60 degrees in both directions

Speeds: 0 - 28 m/min. infinitely variable
4 speed ranges fast feed in front of slotting unit
slow feed in cutting area adjustable
fast feed for transfer
fast return

Counter beam: Counter beam changes automatically
with spindle stroke

Transfer type to profile area: automatic

Operating mode: Single part production, frame-by-frame
production and series production possible


Longitudinal profiling
---------------------------------
Width adjustment: against man. Turret stops
Differences of up to 30 mm are absorbed by the pneumatic
spring-loaded fence
Range: 48 - 170 mm

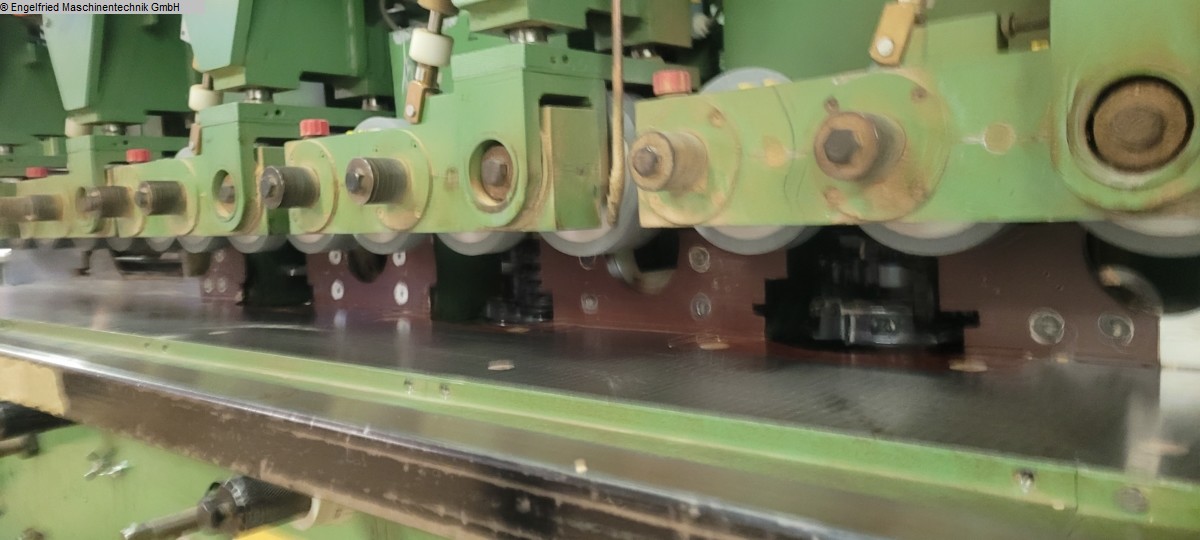

Feed
---------------------------------
Continuous, infinitely variable feed,
Drive power 1.5 kW

Feed return: jog key operation with
Safety key switch Extremely short feed roller distance
Infinitely variable feed speed

*Automatic glazing bead removal incl. glazing bead pull-out device
*Manual lubricant pump in the longitudinal profiling machine
*Double-part package for processing 2 workpieces with the same profile at the same time
in the slitting unit and automatic separation before the
longitudinal profiling machine
*2 pneumatic, program-controlled side lays

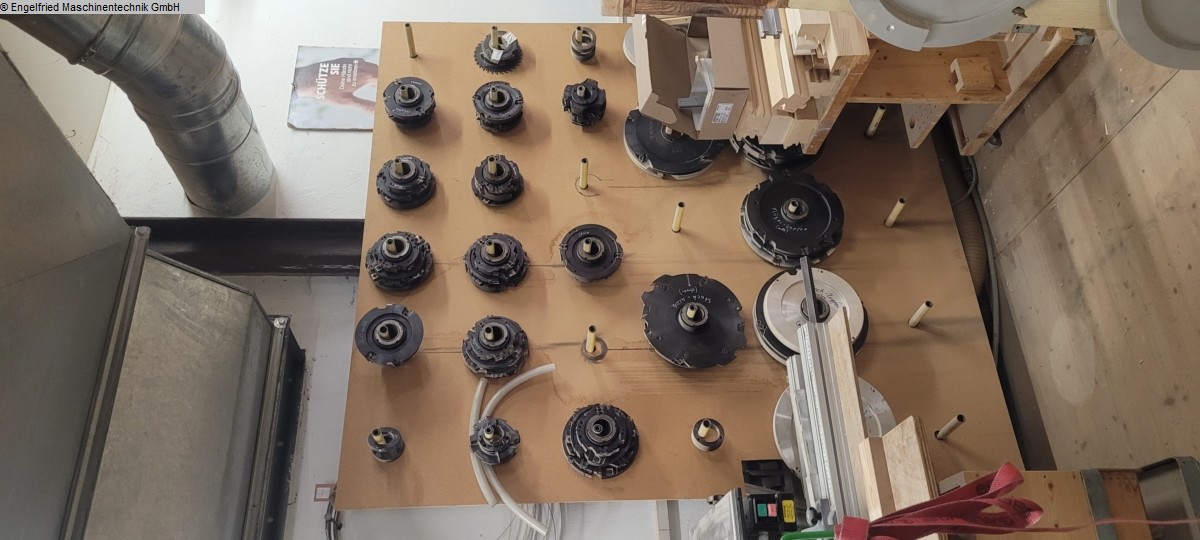

*Machine with normal operating tools, but without processing tools

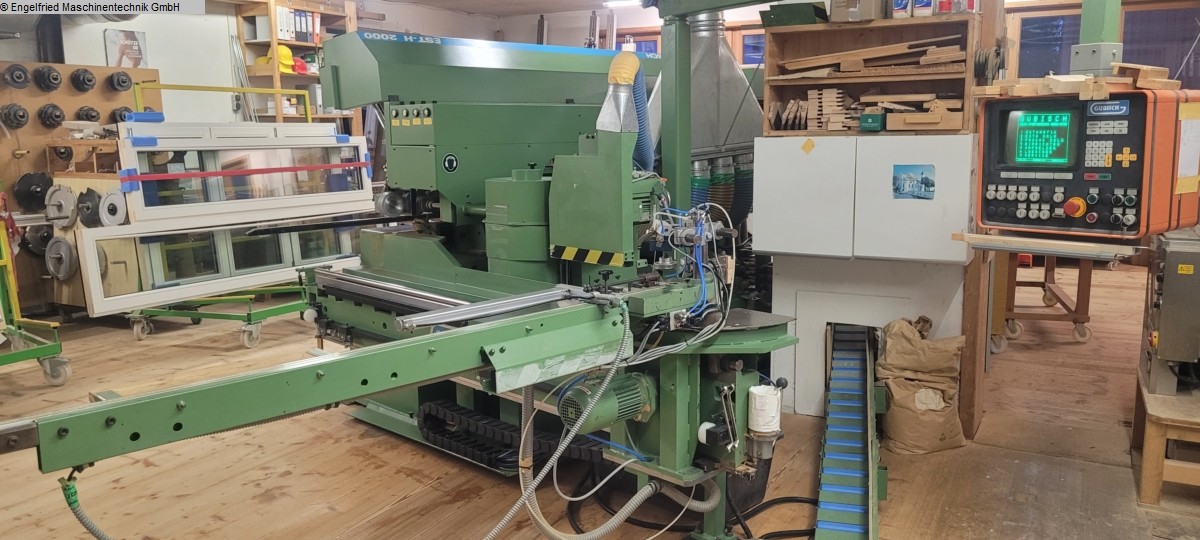

Central control system
---------------------------------
Electronic PC control, including on-screen operator guidance with 60 freely
programmable programs, including memory protection in the event of a power failure

*Operating voltage 380 volts, 50 Hz, IP 44 in accordance with VDE regulations
*6 motor brakes
*The machine is designed in accordance with German regulations and standards

The following machine parts are controlled automatically:

---------------------------------
*Tensioning table
*Counter wood
*All machining spindles in the slotting and milling area
*Transfer from cross to longitudinal processing
*Including return unit
*Including 1 light dimension stop
*including 1 laser
---------------------------------
Price of the above mentioned machine on request!
---------------------------------

(technical data according to manufacturer - without guarantee !)
