SCM Windor 100 CNC still in operation, available for viewing until the end of
December 2025
--------------------------------
Powerful and flexible CNC manufacturing system for windows and doors
Processing of workpieces up to a maximum length of 4500 mm, width of 250 mm,
and thickness of 150 mm

Including Windor 60 type B:

Slotted part:
--------------------------------

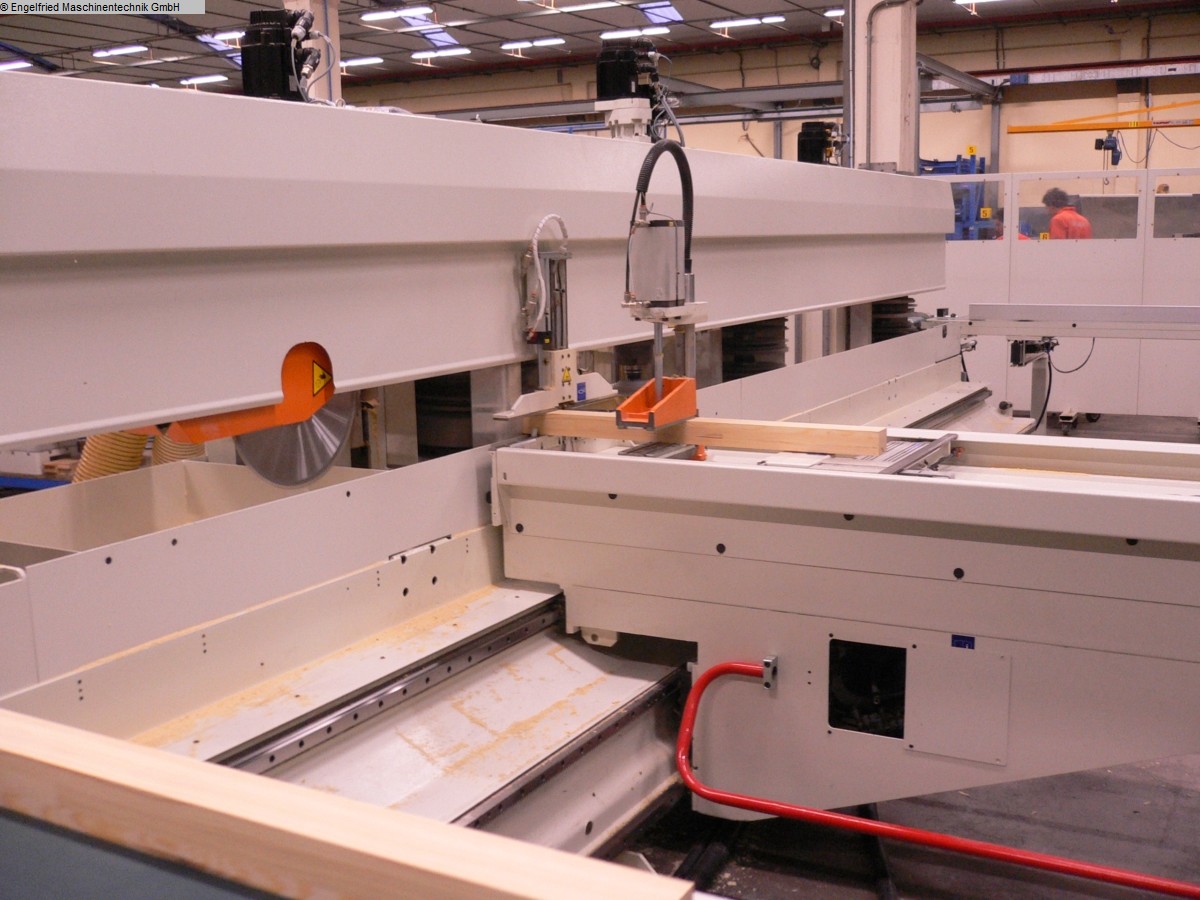

Item 1: Miter saw
--------------------------------
- Motor 4 kW
- 3000 rpm
- Spindle diameter 40 mm
- Maximum tool diameter 400 mm, bore 80 mm

Item 2: 1st slotting spindle
--------------------------------
- High-performance spindle with top bearing, spindle length 620 mm
- Spindle diameter 50 mm
- Motor 11 kW
- 3500 rpm
- Maximum tool diameter 370 mm
- "Jolly" counter-lock device
- Continuously variable vertical positioning
- Interpolating rotary Automatic tilting window adjustment +/- 60 degrees

Item 3: Electric spindle with HSK 63 F tool holder
--------------------------------
- min/max. Rotation speed 1000-12000 rpm
- Maximum motor power 11 kW
- Water cooling
- Rapid 24 automatic tool changer with 24 positions

Item 4: 2nd slotted spindle
--------------------------------
- High-performance spindle with top bearing, spindle length 620 mm
- Spindle diameter 50 mm
- Motor 11 kW
- 3500 rpm
- Maximum tool diameter 370 mm
- "Jolly" locking device
- Continuously variable vertical positioning
- Interpolating rotary tables, automatic inclined window adjustment +/- 60
degrees

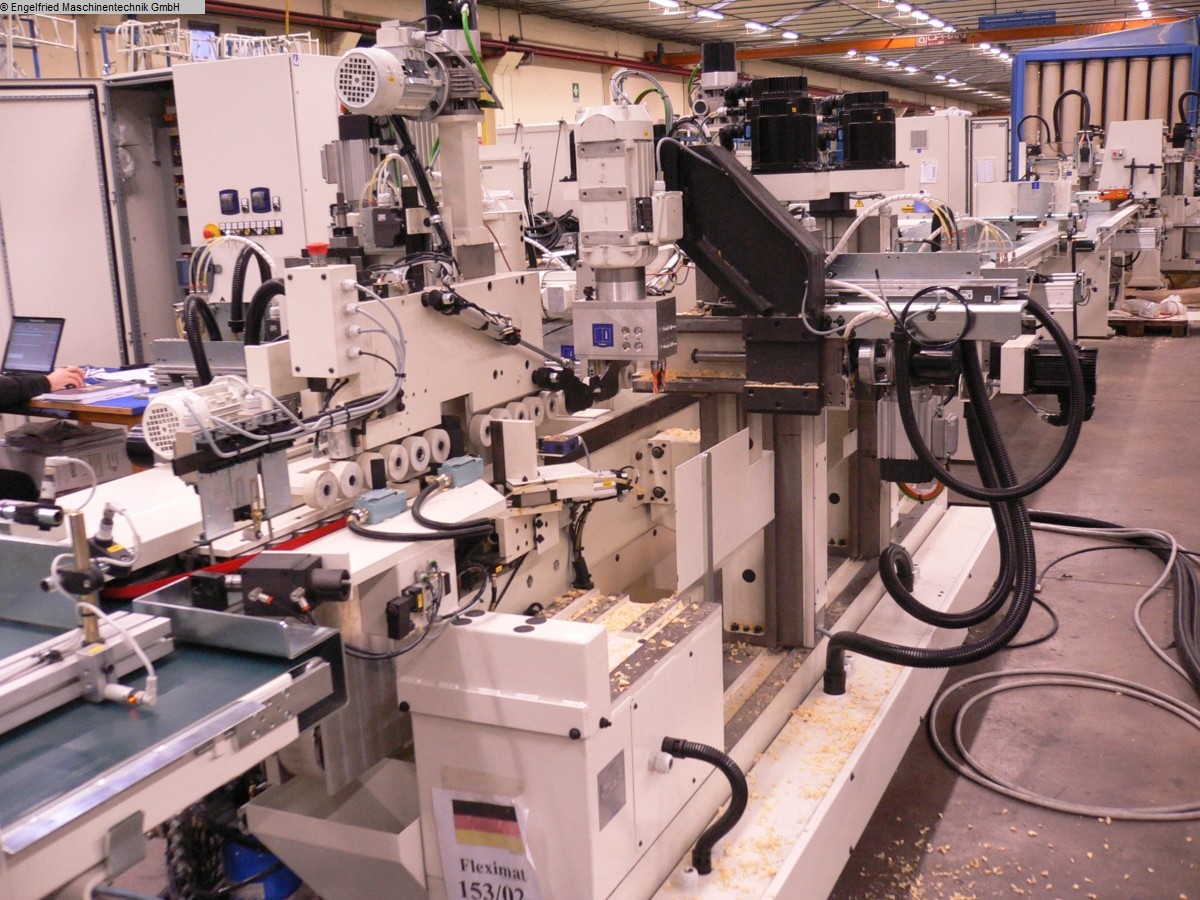

Fleximat
--------------------------------
Including left and right stops with horizontal CNC adjustment for
the following through-feed operations:
Lock case milling and 9-degree anuba drilling from the right. Dowel drilling and
strike plate marking from the left and right, 7 spindles each. Cup hinge holes
and olive holes from above.

Profile part
--------------------------------

Item 5: Power 2000 F4: Electric spindle with HSK 63 F tool holder
--------------------------------
- Working from the left
- Min./max. rotational speed 1000-18000 rpm
- Maximum motor power 12 kW
- Water cooling
- Rapid 24 automatic tool changer with 24 positions

Item 6: 1st profile spindle from the right
--------------------------------
- High-performance spindle with top bearing, spindle length 620 mm
- Spindle diameter 50 mm
- Motor 11 kW
- 6000 rpm
- Min./max. tool diameter 130-250 mm
- Continuous vertical positioning
- Continuous horizontal positioning

Item 7: 2nd profile spindle from the right
--------------------------------
- High-performance spindle with top bearing, spindle length 620 mm
- Spindle diameter 50 mm
- Motor 11 kW
- 6000 rpm
- Tool diameter min./max. 130-250 mm
- Continuous vertical positioning
- Continuous horizontal positioning

Item 7: 3rd profile spindle from the right
--------------------------------
- High-performance spindle with top bearing, spindle length 620 mm
- Spindle diameter 50 mm
- Motor 11 kW
- 6000 rpm
- Tool diameter min./max. 130-250 mm
- Continuous vertical positioning
- Continuous horizontal positioning

Item 9: Device for glazing bead removal
--------------------------------

(Technical description according to the manufacturer - no guarantee!)

------------------------------

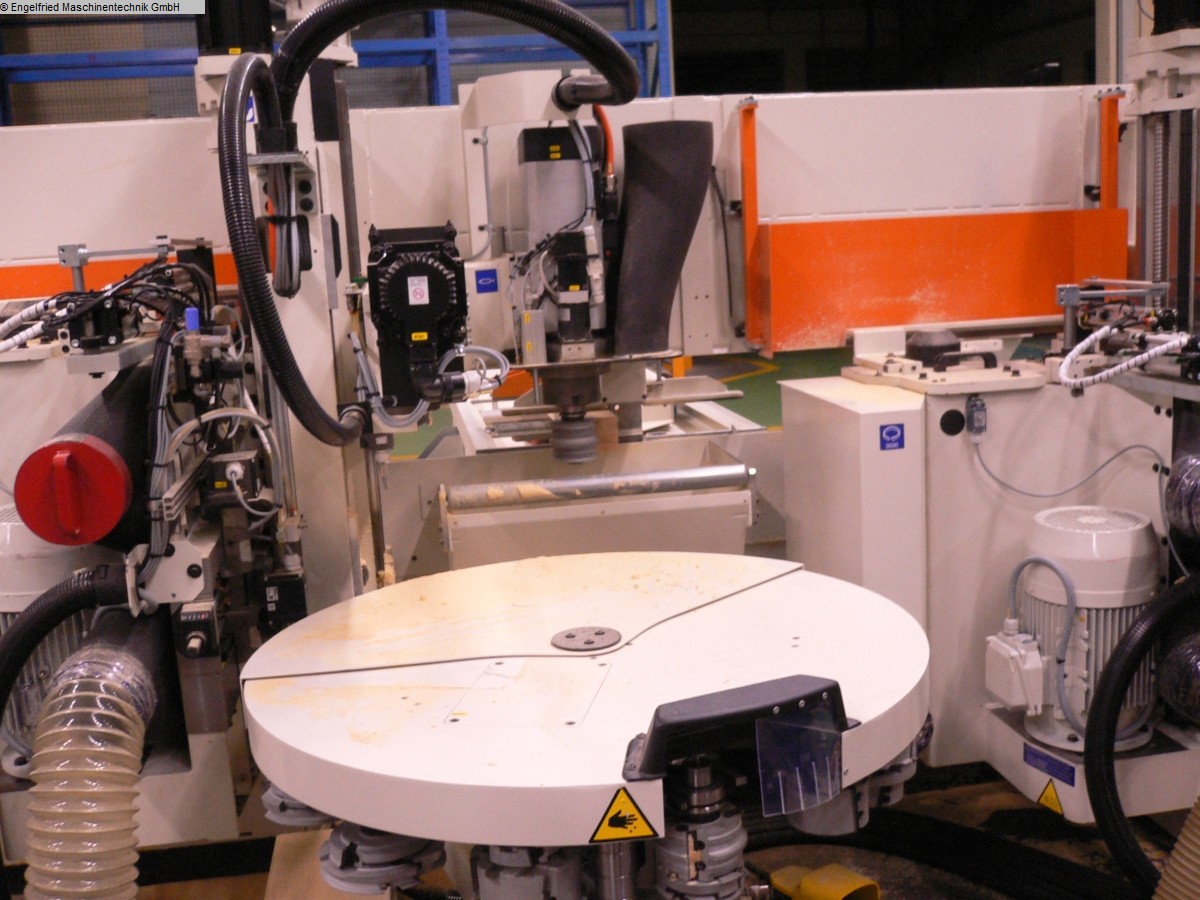

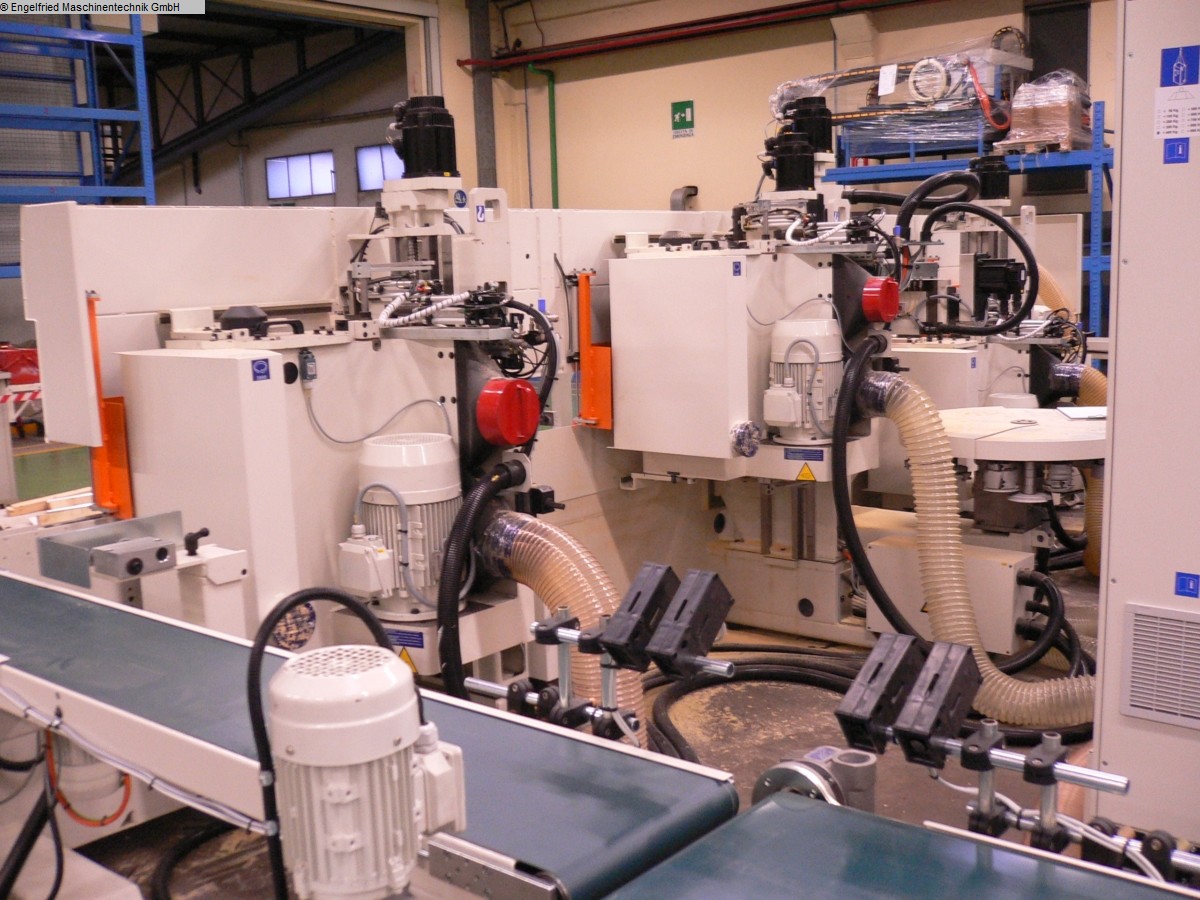

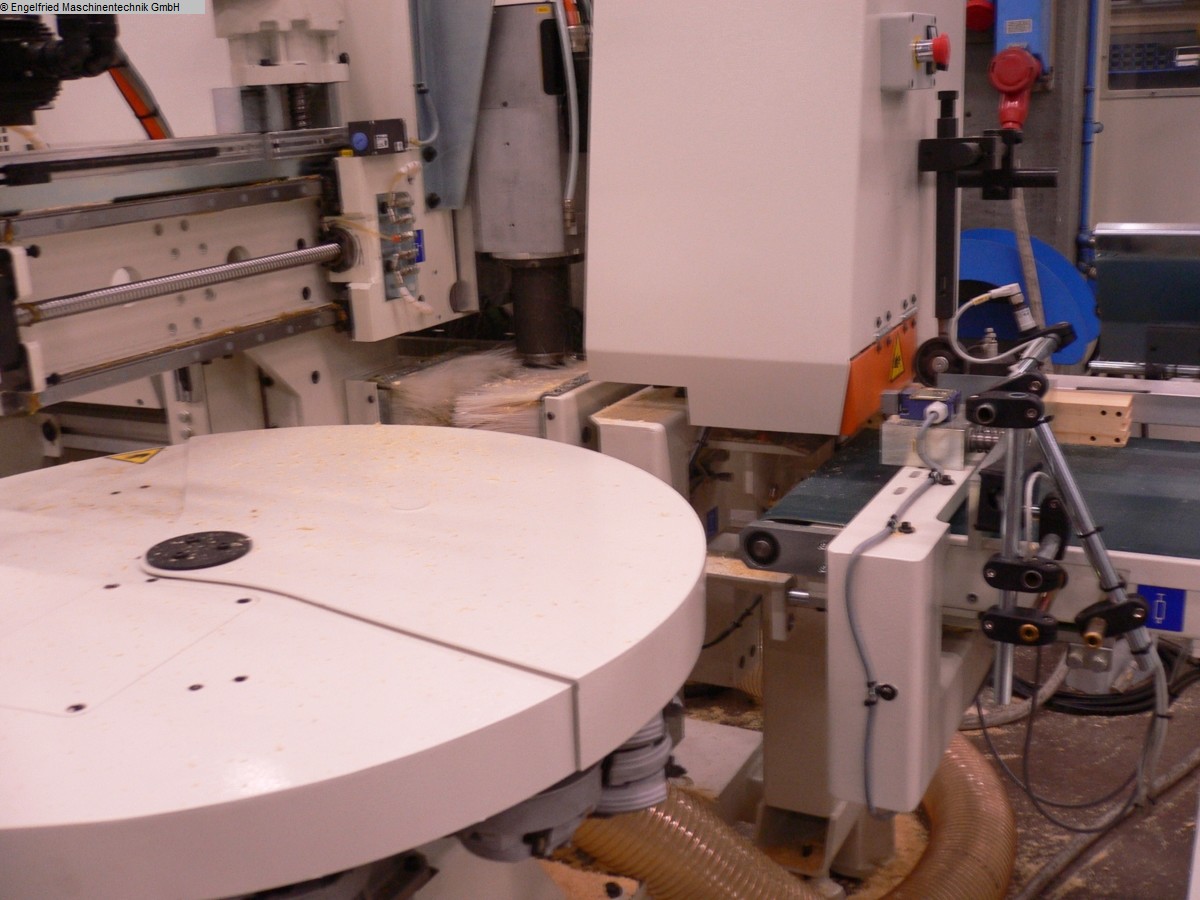

Images are from commissioning/acceptance at our customer's factory.
-------------------------------
Detailed long description as an attachment in PDF
--------------------------------
Price of the above-mentioned machine upon request!
-------------------------------
(Technical specifications according to the manufacturer - no guarantee!)
All prices quoted are net, plus statutory VAT.
