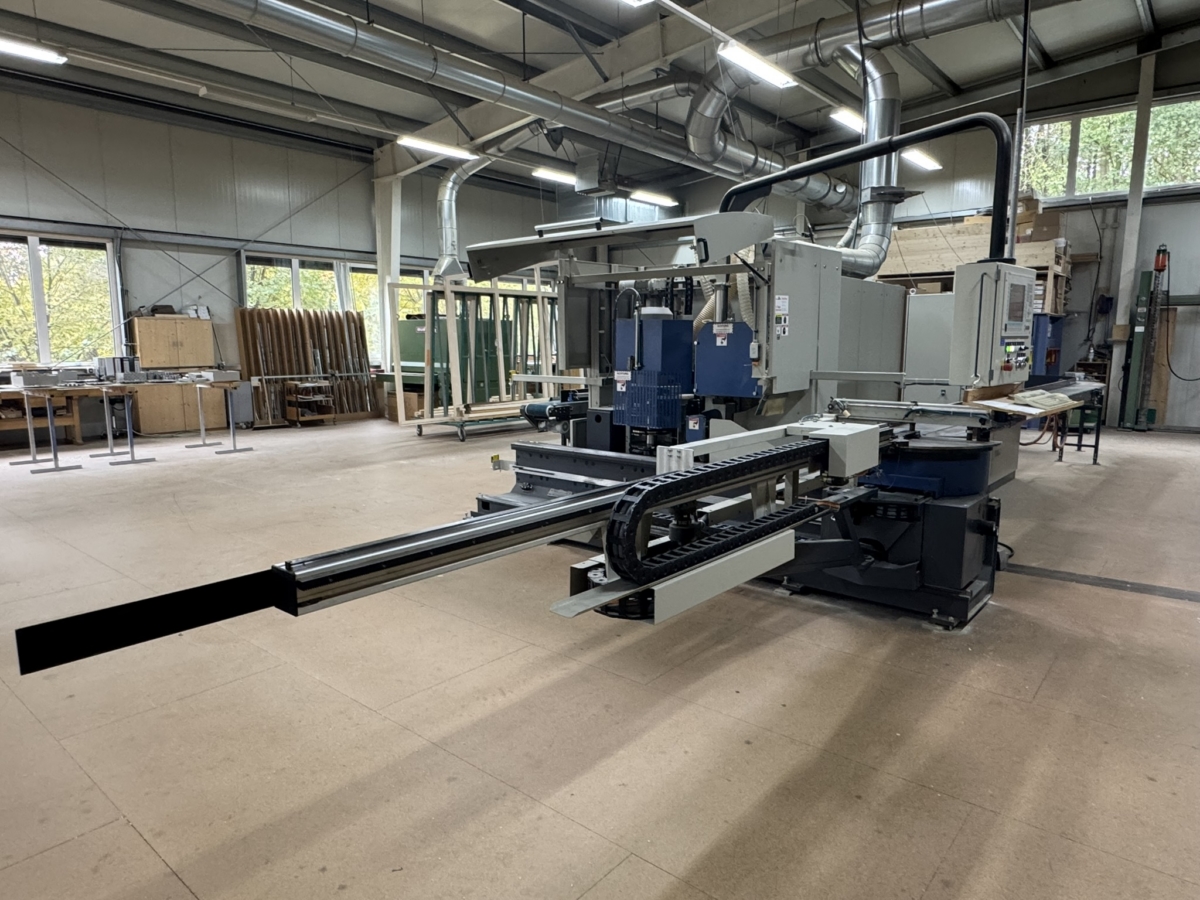

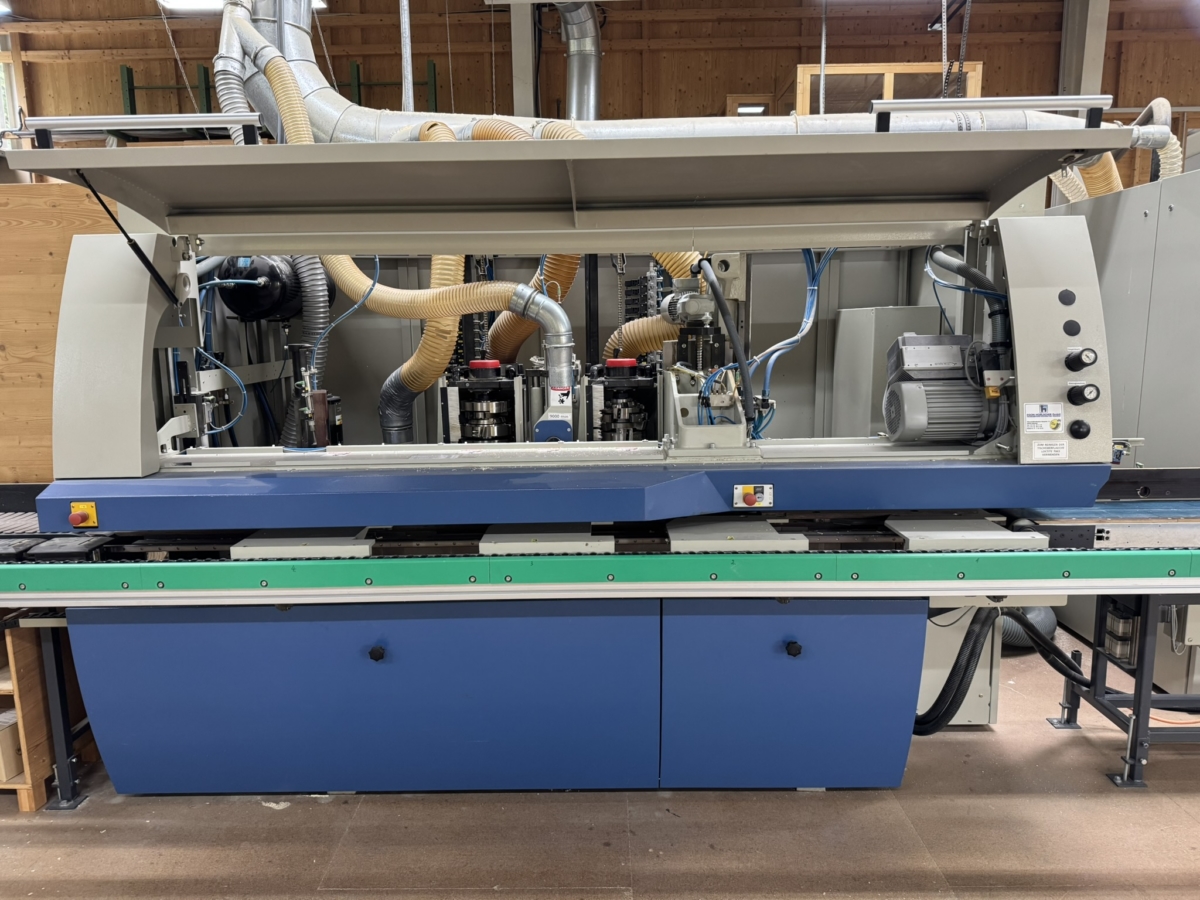

Weinig Unicontrol 12
with radial and axial NC spindles, VARIO table, and milling carriage
......................................................

Machine still in operation available for viewing!
Optionally available with used tools and window design software
for data transfer to the Unicontrol 12!

Technical Data Summary
(Please inquire about any additional accessories included)
......................................................

Crosscut Saw
......................................................
> Electronic crosscut saw, continuously adjustable horizontally
> Number of tools: 1
> Spindle speed: 3,000 - 6,000 rpm
> Spindle diameter: 40 mm
> Maximum tool diameter: 400 mm
> Motor power: 3.0 kW
> Laser alignment light for detecting the saw cut
> Axial adjustment range: 150 mm, electronically continuously adjustable NC axis
> Radial pneumatic adjustment range: 8 positions, e.g., for edge rounding from above

Rounding Unit
......................................................
> Position: horizontal, below
> Motor power: 1.5 kW
> Spindle diameter: 20 mm
> Tool clamping length: 25 mm
> Spindle speed: 9,000 rpm
> Tool diameter: max. 130 mm
> Axial adjustment range mechanically coupled to the cross-cut saw.
> Radial adjustment pneumatically controlled on/off

Electronic length stop
......................................................
> Length 4,100 mm

1. Tenon and slot spindle
......................................................
> Number of tools: variable
> Motor power: 15 kW
> Spindle diameter: 50 mm
> Tool clamping length: 640 mm, with counter bearing
> Axial adjustment range: 580 mm NC axis, continuously variable
> Spindle speed: 2,800 rpm
> Tool diameter: max. 400 mm
> Follow-up counter, the entire clamping length is countered

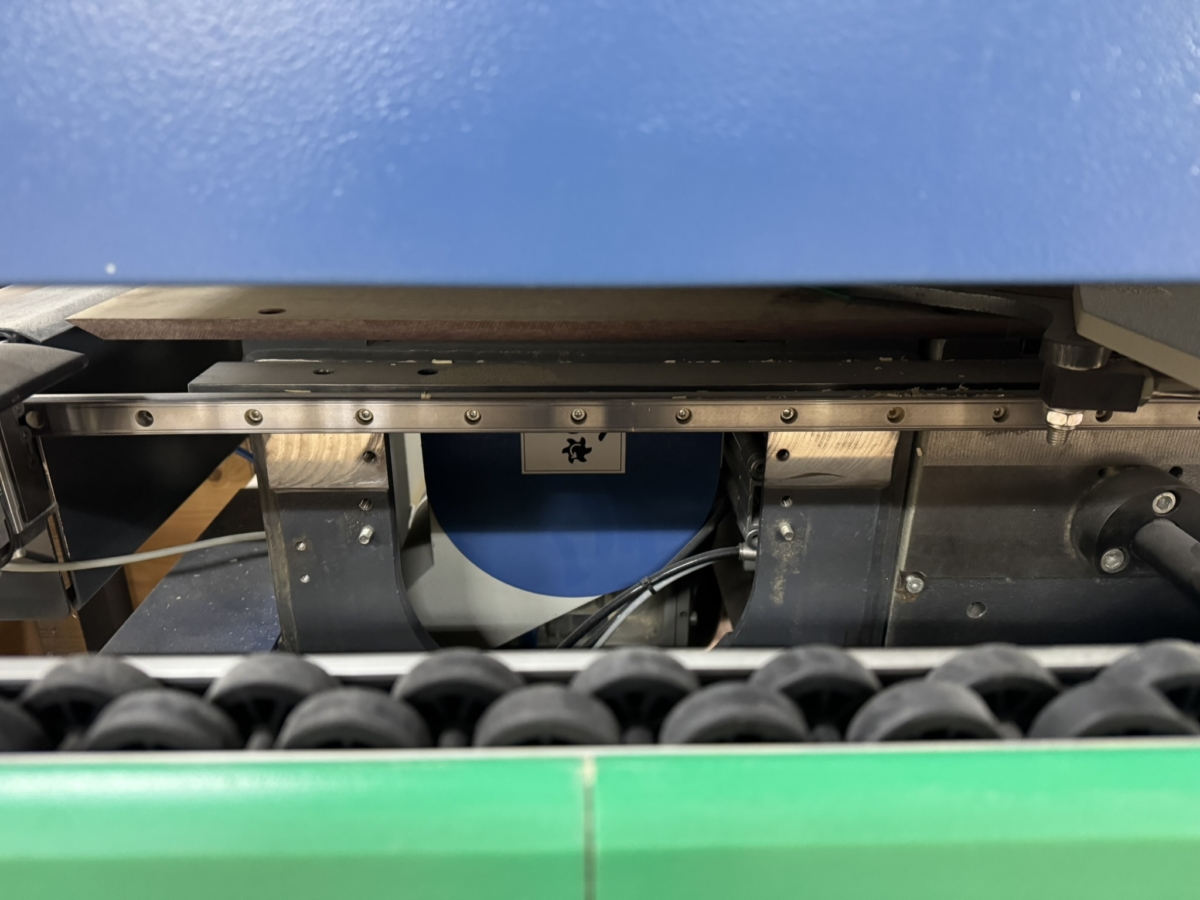

Transfer belt
......................................................
For transferring parts to the longitudinal processing area, including
double part separation before the infeed of the longitudinal processing area.

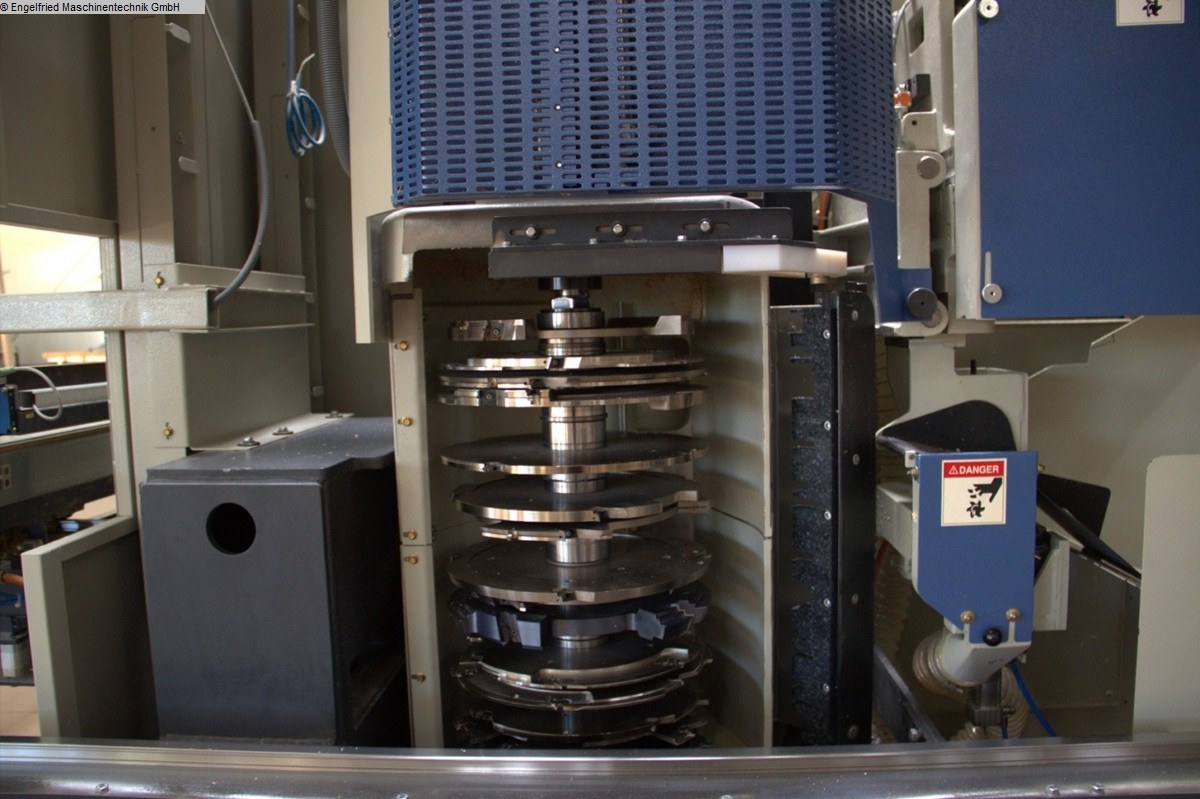

1. Profiling spindle (up- and down-axis rotation)
......................................................
> Position: vertical right
> Number of tools: variable
> Motor power: 11 kW
> Spindle diameter: 50 mm
> Tool clamping length: 400 mm, with counter bearing
> Axial adjustment range: 350 mm, continuously variable NC axis
> Radial adjustment range: 80 mm, continuously variable NC axis
> Spindle speed: 6000 rpm
> Minimum tool travel circle: 140 mm
> Maximum tool travel circle: 232 mm
> 2 feed rollers, pneumatically controlled axially opposite the spindle,
8 positions

2. Profiling unit (grooving unit from above)
......................................................
> Position: horizontal, top
> Motor power: 3.7 kW
> Spindle diameter: 40 mm
> Tool clamping length: 40 mm
> Axial adjustment range: 30 mm 8 positions
> Radial travel 125 mm, 8-station turret
> Spindle speed: 9,000 rpm
> Maximum tool travel: 130 mm

3rd profiling spindle
......................................................
> Position: vertical right
> Number of tools: variable
> Motor power: 11 kW
> Spindle diameter: 50 mm
> Tool clamping length: 400 mm, with counter bearing
> Axial travel 350 mm, continuously variable NC axis
> Radial travel 80 mm, continuously variable NC axis
> Spindle speed: 6,000 rpm
> Minimum tool travel: 140 mm
> Maximum tool travel: 232 mm
> 2 feed rollers axially pneumatically controlled opposite the spindle,
8 positions
> Intermittent guide rail in the stop with a rung support bar from
above in the range of Profile milling unit on the right

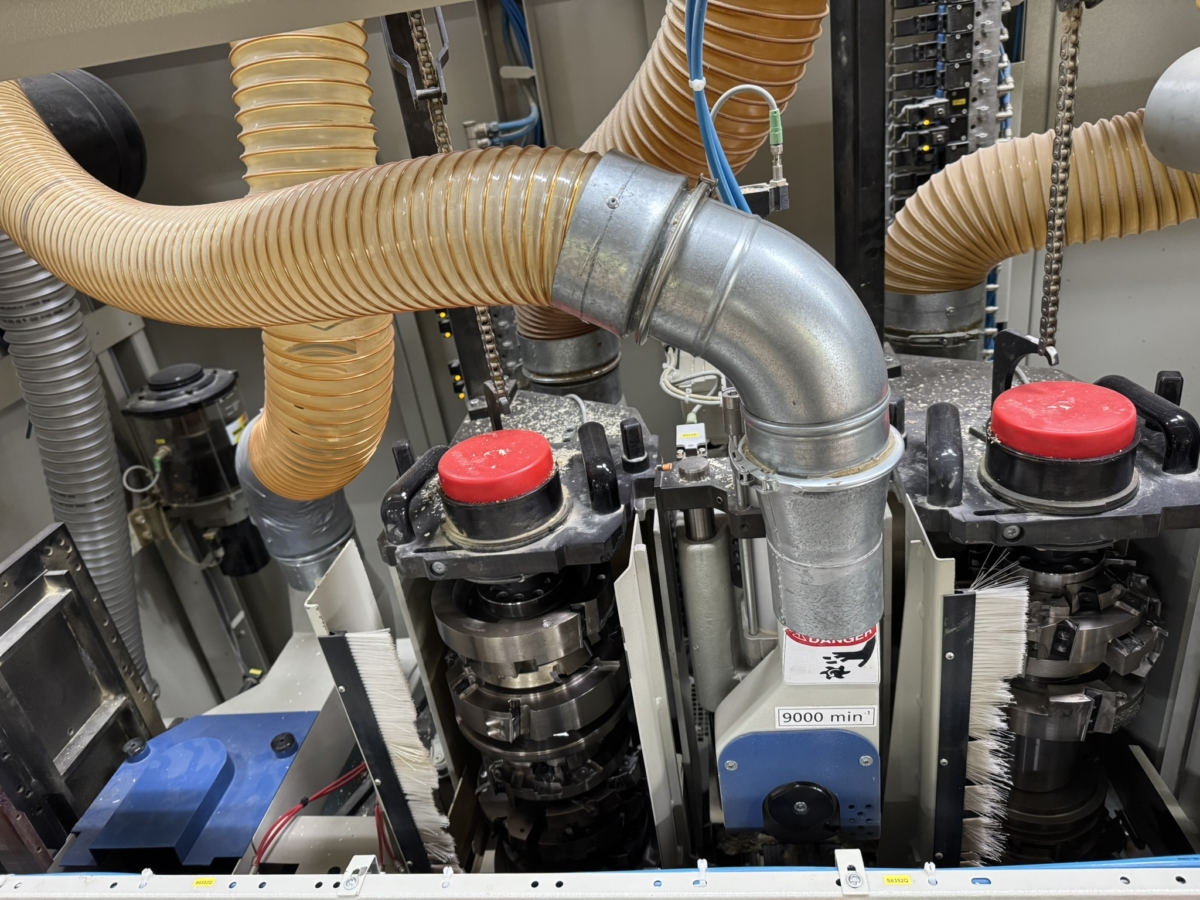

4. Profile milling unit (fitting spindle)
......................................................
> Position: vertical, right
> Motor power: 3.7 kW
> Spindle diameter: 40 mm
> Tool clamping length: 160 mm
> Axial adjustment range: 115 mm, 8 positions
> Radial adjustment range: 100 mm, 8-station turret
> Spindle speed: 5850 rpm
> Maximum tool travel: 210 mm
> Minimum tool travel: 112 mm

5. Profiling spindle (grooving unit from below, in the additional column)
......................................................
> Position: horizontal, below
> Motor power: 3 kW
> Spindle diameter: 40 mm
> Tool clamping length: 125 mm
> Axial adjustment range: 100 mm, 8 positions
> Radial adjustment range: 100 mm, 8-station turret
> Spindle speed: 5850 rpm
> Maximum tool radius: 200 mm

Additional features
......................................................

> Online-capable
> Rebating device for tear-free rebating
> Milling carriage for milling sashes with frame widths under 500 mm.
Automatic pneumatic clamping
> 9 feed rollers controlled up/down after the last profiling spindle for
faster and shorter remilling processes
> Feed height adjustment with NC axis
> Pneumatically divided left-hand pressure guide, divided for wood widths 40-140 mm
> Double parts package

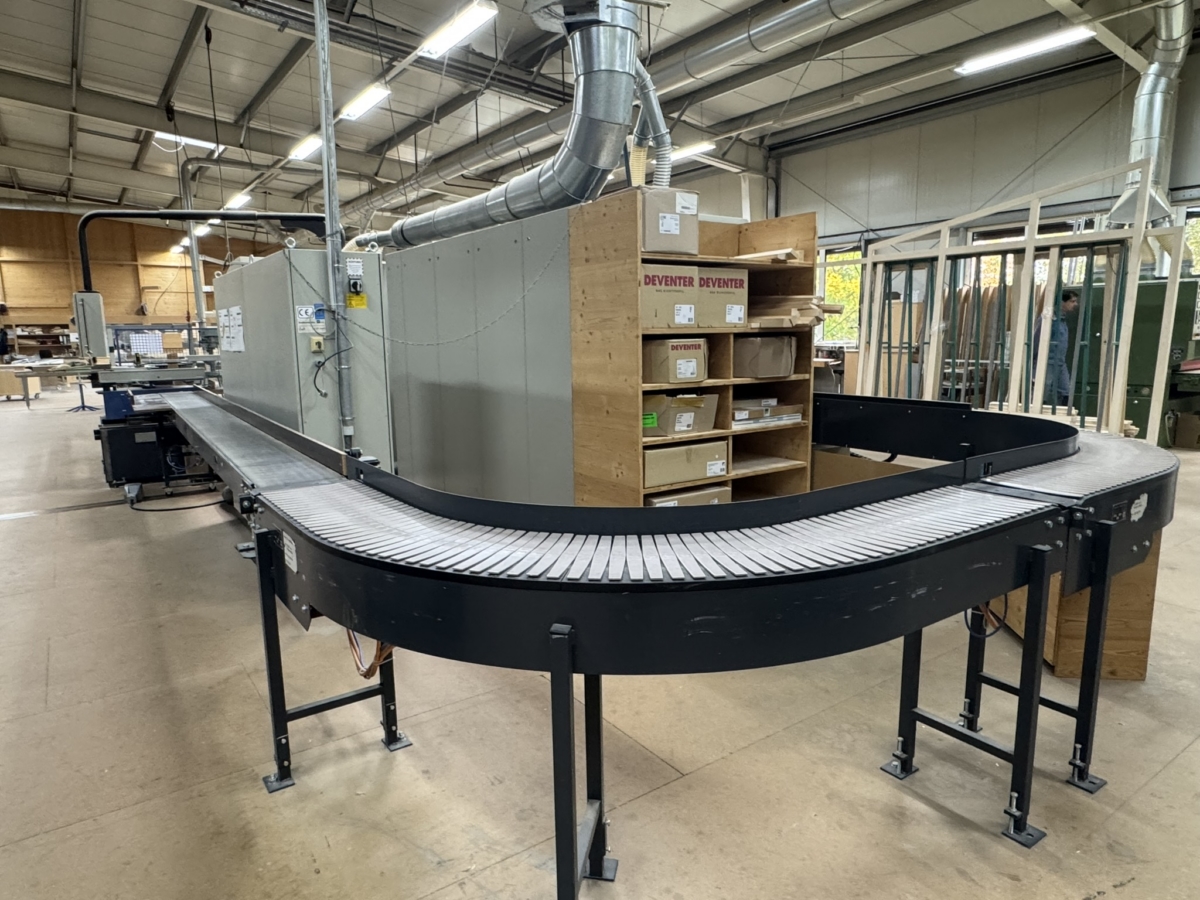

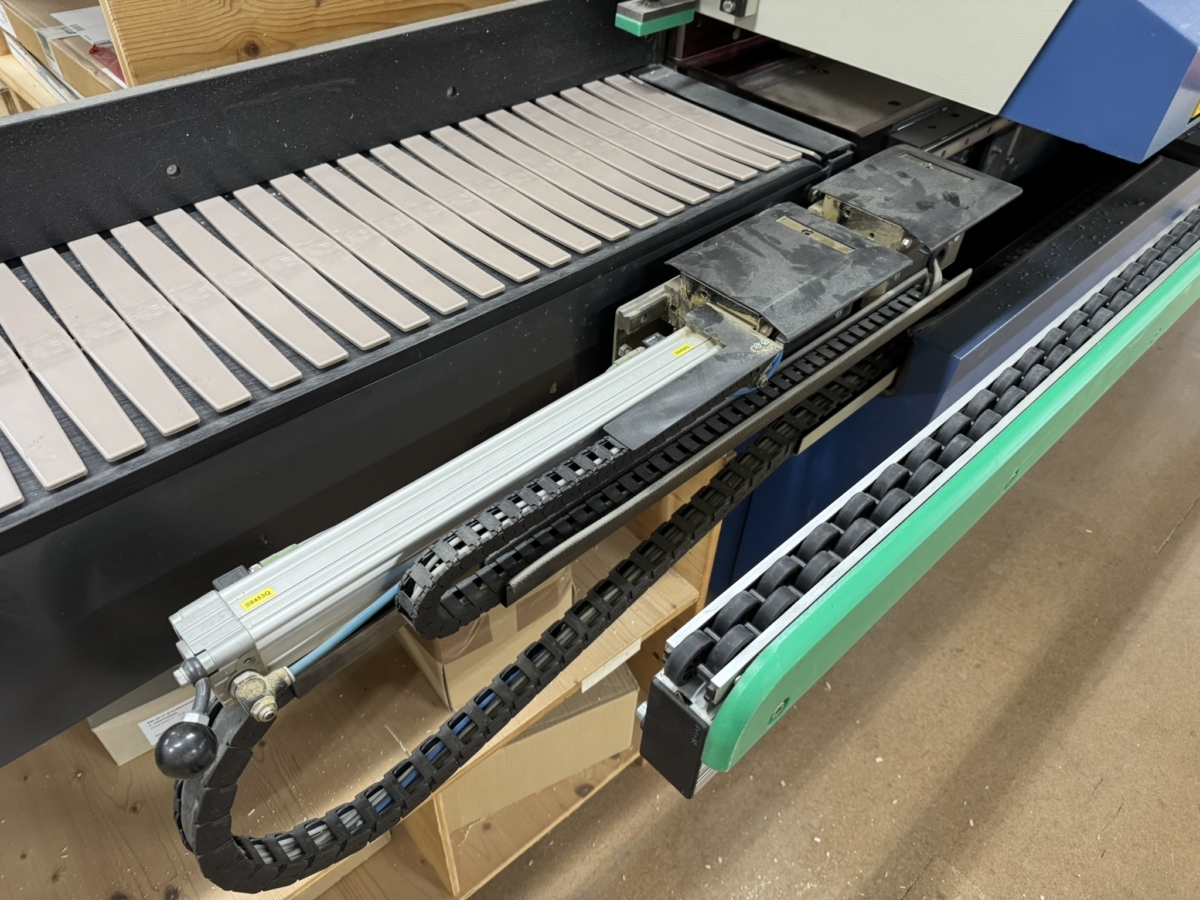

> Return conveyor for one-person operation: slat conveyor
> Screen control
> Inclined window device
> Electronic angle display for inclined windows
> Control: NEXUS PC control

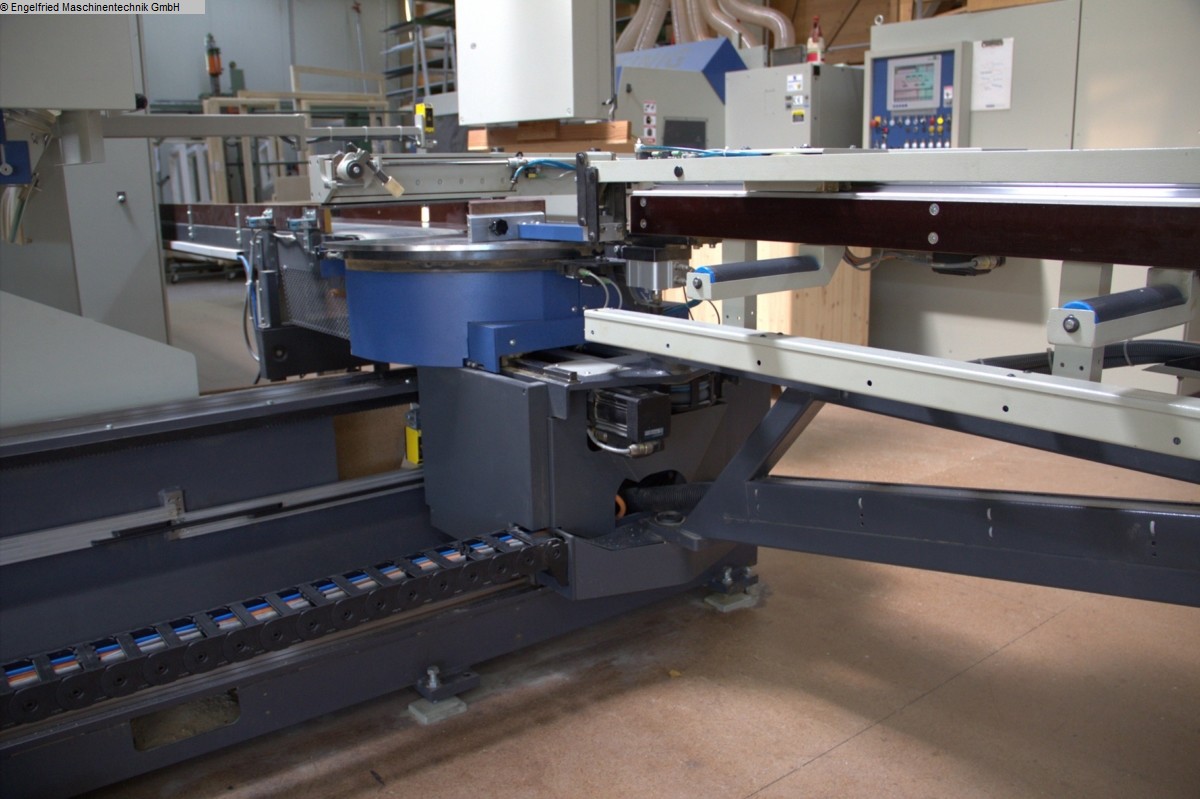

> Vario table with horizontal NC axis
> Automatic central lubrication
> Air conditioning unit in the control cabinet
> Weinig standard production

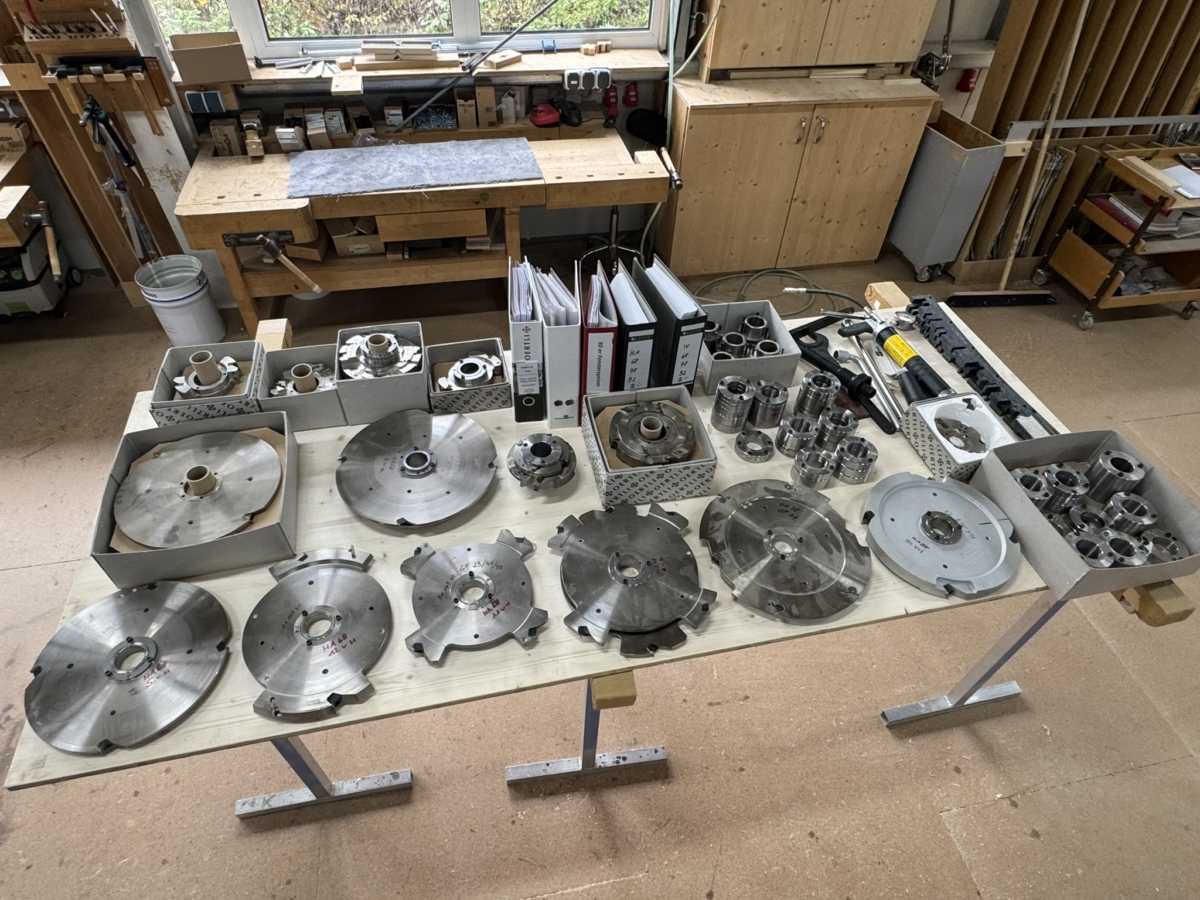

Optional used OERTLI tools (at an additional cost, please inquire!):
......................................................
Systems programmed and run-in/in production:
IV 68 wood and wood-aluminum, IV 78 wood and wood-aluminum.
Tools (additional panes) available for IV 92 wood and wood-aluminum
(but ??not programmed or installed)
Corner joint:
Frame and sash tenon-and-slot.
Mullions, transoms, set pieces, counter dowels.

Individual part production, meaning sashes are rebated on the individual part.
Special windows such as sloped windows were rebated on the Unicontrol in the pressed
state.

Sale of tools in the condition, scope and with accessories as available in our
warehouse. Note on window cuts, tool drawings, tool system listings:
Engelfried does not guarantee that the tools actually available
correspond to the systems mentioned and drawn.


Optional window software ADULO/Cobus (at an additional cost, please inquire!):
......................................................
PC with Adulo window design software for data transfer to the Unicontrol

If the technical specifications of this machine do not
meet your requirements, please contact us. Our experienced team will be happy to assist you with any customizations or help you find a machine that meets your needs!

(Technical specifications provided by the manufacturer - no guarantees!)
