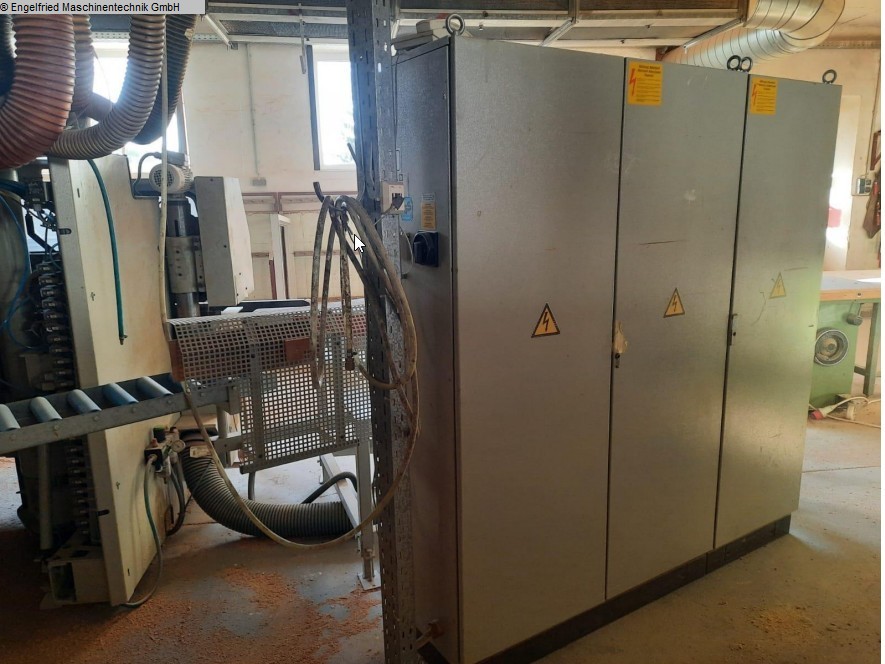

# 2809 Weinig Unicontrol 6
--------------------------------------------

Technical Data Summary

(Please inquire about any additional accessories included)

Item 1: Cut-off saw
--------------------------------------------
> Number of tools: 1 pc.
> Spindle speed: 2,800 rpm
> Spindle diameter: 40 mm
> Maximum tool diameter: 400 mm
> Motor power: 3.0 kW

> Laser guide light for identifying the saw cut

CNC-controlled length stop
-------------------------------------------
> Length: 3,600 mm
> Electronic length stop including positioned cut-off saw

Item 2: Tenoning spindle
--------------------------------------------
> Number of tools: 3 (stroke 2 x 100 mm) or 4 (Stroke 3 x 80 mm)
> Tool clamping length: 320 mm
> Pneumatic vertical spindle stroke: 240 mm for wood thicknesses 68 - 92 mm
> Spindle speed: 3000 rpm
> Maximum tool swing diameter: 320 mm
> Spindle diameter: 50 mm
> Maximum tool diameter: 360 mm
> Motor power: 11 kW

Item 3: 1. Profiling spindle (co-rotation and conventional)
--------------------------------------------
> Position: vertical right
> Number of tools: 1 pc.
> Tool clamping length: 120 mm
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Maximum tool swing diameter: 232 mm
> Motor power: 7.5 kW

Item 4: 2. Profiling spindle
-------------------------------------------
> Position: Vertical right
> Number of tools: 3 (stroke 2 x 100 mm) or 4 (stroke 3 x 80 mm)
> Tool clamping length: 320 mm
> Pneumatic vertical spindle stroke: 240 mm for wood thicknesses 68 - 92 mm
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Maximum tool swing diameter: 232 mm
> Motor power: 11 kW

2 axially indexed feed rollers opposite the profiling spindle,
for the production of narrow, short parts (e.g., glass-dividing muntins)

Munch guide consisting of:
Munch support strip from above in the area of ??the vertical right-han
d profile milling unit and profiling spindle.

Item 5: Horizontal top profile milling unit
--------------------------------------------
> Clamping length: 40 mm
> Spindle diameter: 40 mm
> Motor power: 3.0 kW
> Spindle speed: 5,850 rpm
> Maximum tool swing diameter: 130 mm
> Axial travel: 52 mm, indexed in 2 positions
> Radial travel: 125 mm, indexed in 2 positions

Item 6: 3rd profiling spindle (fitting spindle)
--------------------------------------------
> Position: Vertical right
> Tool clamping length: 160 mm
> Axial travel: 90 mm, indexed in 3 positions
> Radial travel: 100 mm, indexed in 2 positions
> Spindle speed: 5,850 rpm
> Spindle diameter: 40 mm
> Maximum tool swing diameter: 210 mm
> Motor power: 3.0 kW

Further features
-------------------------------------------
> Electric feed height adjustment including mechanical digital display
and manual feed bar clamping
> Rebating device for tear-out-free rebating
> Double part package
> Return conveyor for 1-person operation: swivel conveyor
> Screen control
> Angled window device
> Electronic angle display for angled windows
> Industrial PC with Windows PC control/NEXUS

Extraction nozzle diameter:

--------------------------------------------
Crosscut saw 80 mm
Tenoning spindle 140 mm
Profile spindle 1 140 mm
Profile spindle 2 140 mm
Grooving device from above 80 mm
Hardware spindle 120 mm
--------------------------------------------
Price of The above-mentioned machine is available upon request!

------------------------------------------

OPTION at additional cost:

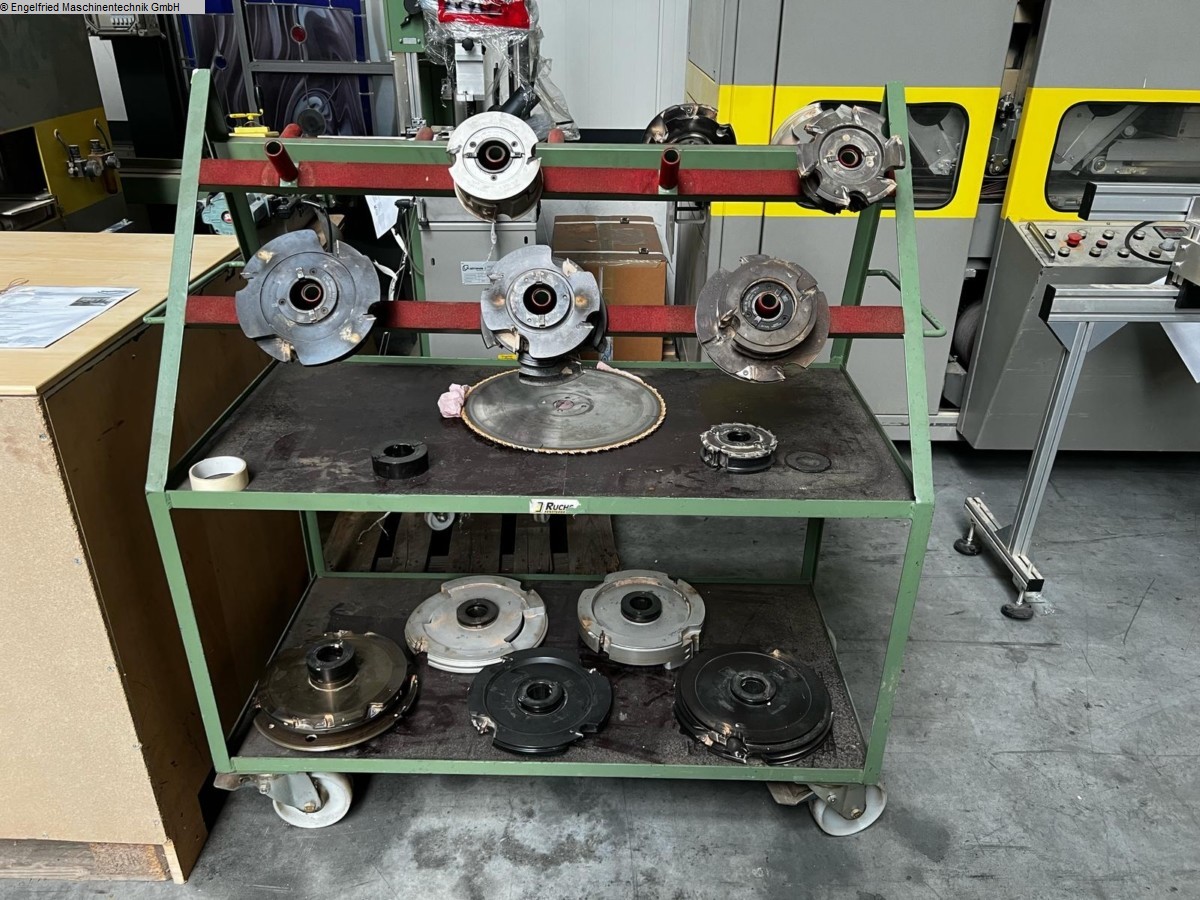

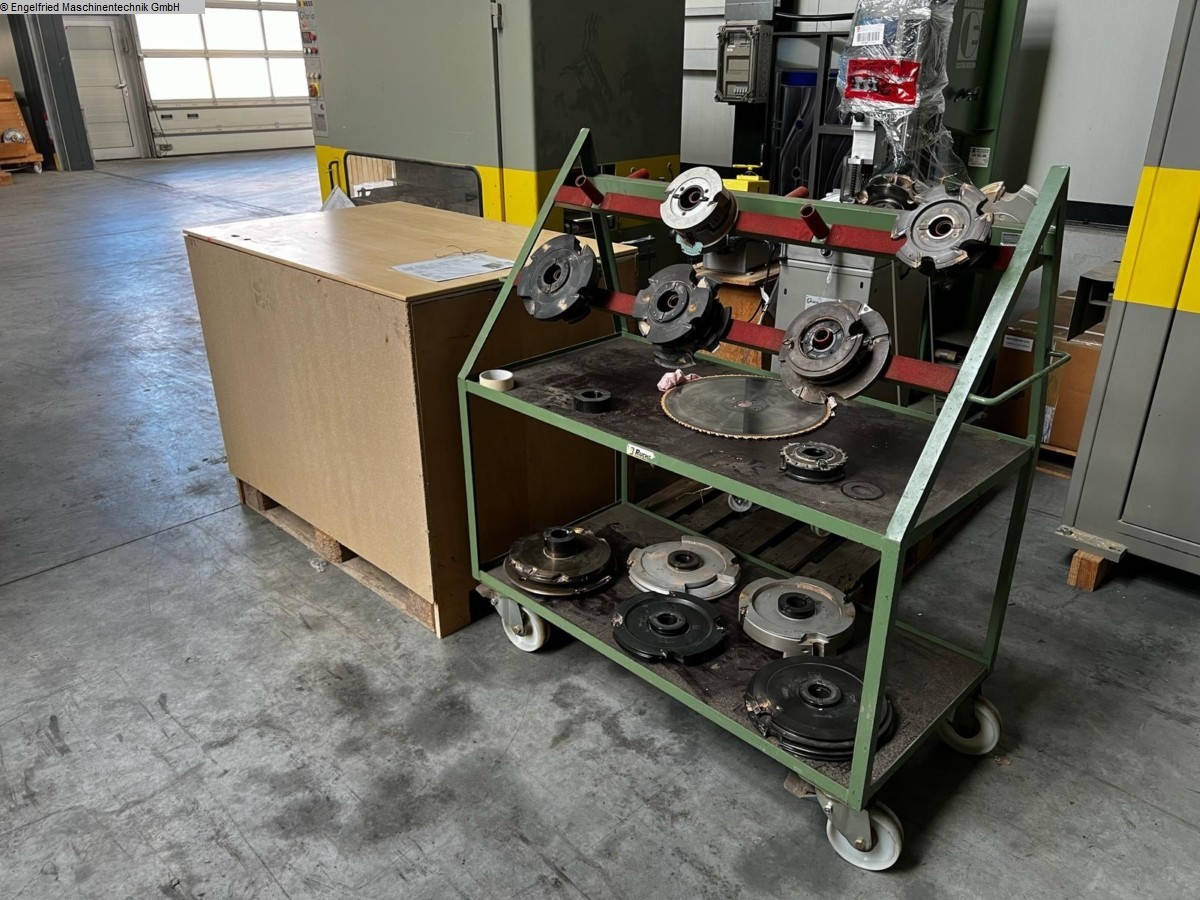

Stock number #6959: Used Leitz tools, manufactured in 2009:

- IV 68/78 wood (additionally prepared for IV 88,
split bushings)

- and IV 68/78 wood-aluminum.

- Includes extensive spare blades

The tools were used on a Weinig Unicontrol 6 with pneumatic
fixed stroke adjustment.

The tools are sold in the condition, scope, and with accessories as
currently available in our stock. Note regarding window cuts, tool drawings,
and tool system listings:
Engelfried GmbH does not guarantee that the actual tools correspond to the
systems mentioned and drawn.

If the technical specifications of this machine do not meet your requirements,
please contact us. Our experienced team will gladly assist you with
any necessary adjustments
or in finding a machine that meets your requirements!

(Technical data according to the manufacturer - no guarantee!)
