| Szczegóły oferty | |
| Sklad numer | 1305-6986 |
| Typ maszyny | Prasa do forniru |
| Fabrykant | OTT |
| Typ | Stabil-3013 |
| Rok budowy | 1984 |
| Preis | 7500.00 EUR |
| Rodzaj sterowania | konventionell |
| Miejsce skladowania | Deutschland |
| Kraj pochodzenia | Germany |
| Czas dostawy | immediately |
| Podstawa Transportowa | ex location |
| Plate dimensions | 3000 x 1350 mm |
| Daylight opening | 400 mm |
| Number of daylights | 1 St. |
| Total pressure | 3,5 - 5,5 to |
| Dimensions (L/W/H) | 3530 x 1520 mm |
| weight of the machine ca. | 6500 kg |
| Number of pressing cylinders | 6 Stk. |

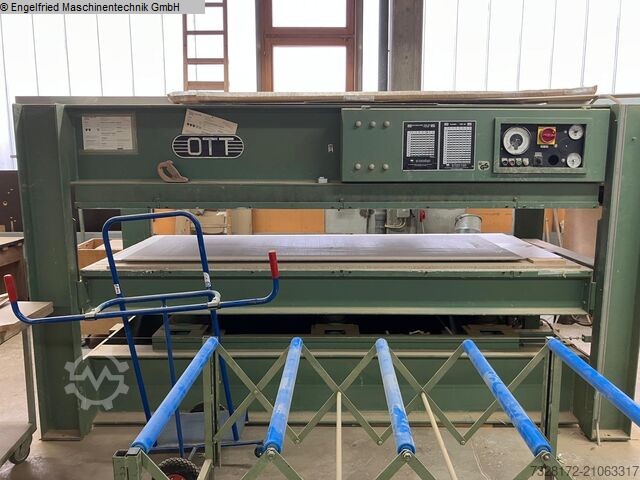

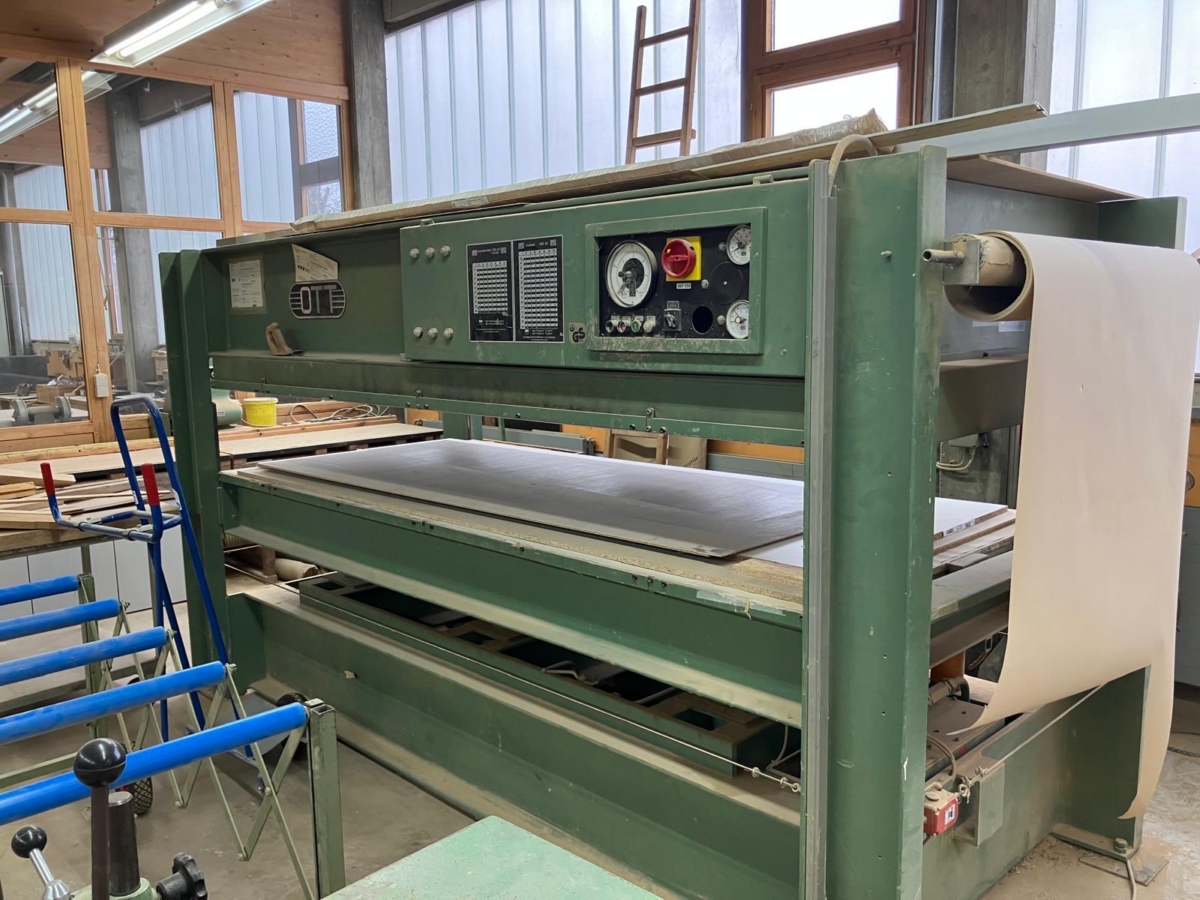

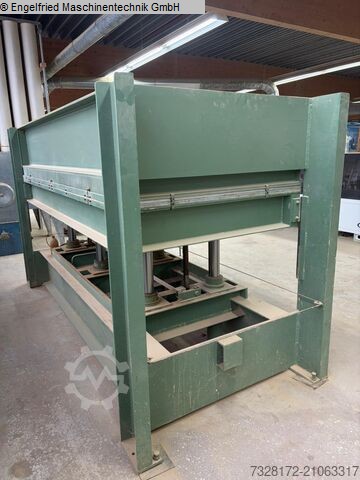

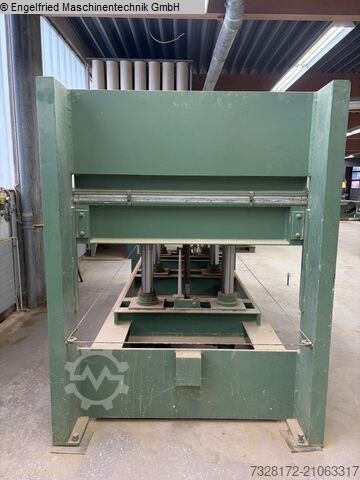

Ott Veneer Press Type Stabil-3013
--------------------------
Technical Manufacturer's Description:
-Pressing area: 2,500 × 1,350 mm
-6 cylinders
-Replaceable aluminum plates
-Protective film
-Plate size: 3,000 x 1,350 mm
-Total pressing force: 135 t, 3.5 - 5.5 kg/cm²
-Operating pressure, max. 340 bar
-Pressure cylinders: 6 x 90 mm diameter
-Opening width: 400 mm
-Weight with 2 plates: approx. 6,300 kg
-Overall length: 3,530 mm
-Overall width: 1,520 mm
-Overall height with 2 plates: 2,000 mm
-Motor power rating: 2.2 kW
-Power rating per electric heating plate: 11.2 kW
-Consumption per plate: Approx. 4.5 kW/h
-Heating time 20 - 100 degrees Celsius: approx. 20 min
-Consumption per hot water heating plate: approx. 9000 W/h
--------------------------
Price of the above-mentioned machine available upon request!
------------------------
(Technical specifications according to the manufacturer - without guarantee!)
All prices quoted are net prices, excluding VAT.
